M80-5003422

Headers, Male Pins Overview

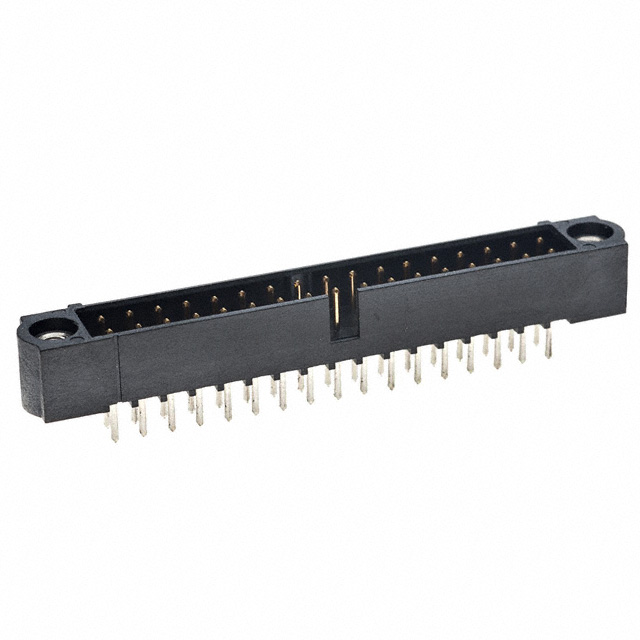

The M80-5003422 is a Datamate J-Tek series header connector manufactured by Harwin Inc. It features 34 positions arranged in a dual-row configuration with a 2mm mating pitch. Designed for vertical through-hole mounting, this component utilizes phosphor bronze contacts with gold plating and a PPS housing rated UL94 V-0. The connector supports board-to-board or cable applications, operating within a temperature range of -55°C to +125°C. It carries an electrical rating of 120V and 3A per contact, ensuring reliable performance in industrial environments.

Headers, Male Pins Feature Summary

• Dual-row pin header design for high-density interconnects
• Vertical through-hole termination for secure PCB mounting
• Gold-plated phosphor bronze contacts for corrosion resistance
• PPS insulation material with UL94 V-0 flammability rating

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission
• Automotive electronics harnesses and modules
• General-purpose printed circuit board interconnections
• Military equipment connectors demanding reliability

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm exact pin count, tail length, and keying options. Ensure compatibility with mating receptacles from the same Datamate J-Tek family. Check RoHS compliance status and lead times directly with authorized distributors, as availability may vary due to production cycles.

Headers, Male Pins Selection Notes

Select this model when a 34-position vertical header is required for space-constrained designs. Consider the 2mm pitch for standard density needs. Verify that the mating connector matches the J-Tek series specifications. Evaluate thermal requirements against the -55°C to +125°C operating range before finalizing the component choice for the assembly.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek line, known for compact rectangular connectors. It serves as a male header counterpart to female sockets in the same ecosystem. The part number structure indicates specific row count, position, and mounting style variations within the broader M80 product family offered by Harwin.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference only with other Harwin M80-50034xx variants sharing identical pin counts and mechanical dimensions.
