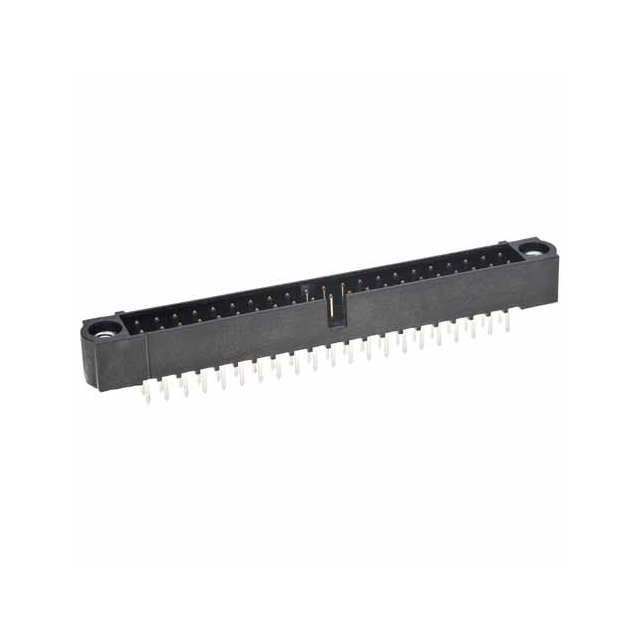

M80-5004222

$6.19

Description：CONN HEADER VERT 42POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:afd29a47928a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5004222 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 42POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5004222

Description：CONN HEADER VERT 42POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：42
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.128" (3.25mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Headers, Male Pins datasheet and documents for M80-5004222

M80-5004222

Headers, Male Pins Overview

The M80-5004222 is a Datamate J-Tek series male header connector manufactured by Harwin Inc. It features a 2-row, 42-position configuration with a 2mm (0.079 inch) pitch. Designed for vertical through-hole mounting, this component utilizes screw-lock fastening mechanisms to ensure secure mating. The contacts are gold-plated phosphor bronze, rated for 120V and 3A current. The housing is constructed from black Polyphenylene Sulfide (PPS), supporting an operating temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

High mechanical resilience with 100G shock, 40G bump, and 10G vibration resistance capabilities.
Secure connection integrity provided by integrated screw-lock fastening systems.
Robust environmental performance across extreme temperatures ranging from -55°C to +125°C.

Headers, Male Pins Applications

Industrial control systems requiring high vibration resistance
Automotive electronics interfaces
Harsh environment data transmission applications

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the screw-lock termination style matches the assembly tooling available. Ensure the voltage and current ratings align with the system's electrical load specifications. Check for RoHS compliance status if required by regulatory standards.

Headers, Male Pins Selection Notes

Select this model when high-density interconnects are needed in space-constrained designs. The 2mm pitch allows for significant I/O density on PCBs. Consider the vertical orientation for board-to-board connections where height clearance permits. The screw-lock feature is critical for applications subject to mechanical stress or vibration.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for its compact size and high reliability. The M80-5004222 specifically addresses the need for robust, high-pin-count connectors in demanding environments. Its design supports both board-to-board and cable-to-board applications within the same ecosystem.
