M80-5005005

Headers, Male Pins Overview

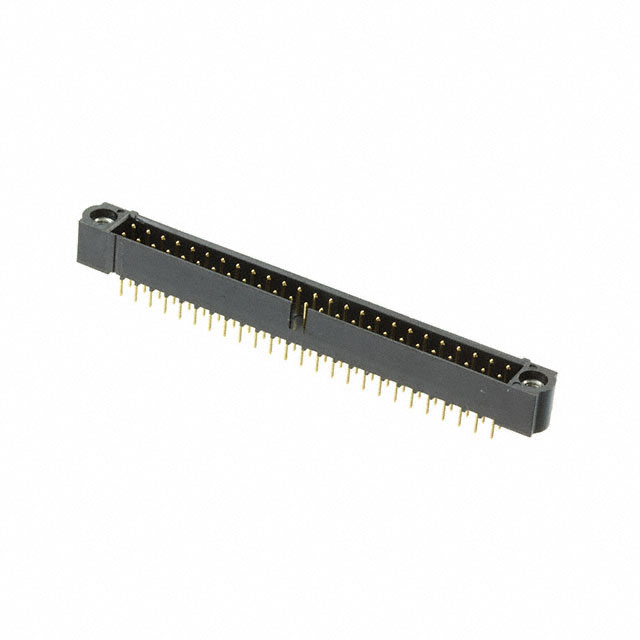

The M80-5005005 is a Datamate J-Tek male header connector designed for vertical through-board mounting. It features a 2mm pitch with 50 positions arranged in a dual in-line configuration (25+25 contacts). The contacts are gold-plated to ensure reliable signal transmission. This component belongs to the high-reliability Datamate series, engineered for robust performance in demanding electronic interconnection applications.

Headers, Male Pins Feature Summary

• Vertical through-board mounting style for secure PCB integration
• Dual in-line layout providing 50 contact positions
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Compatible with standard jackscrew locking mechanisms

Headers, Male Pins Applications

• Industrial control systems requiring high-density connections
• Automotive electronics interfaces
• Military and aerospace communication equipment
• General-purpose heavy-duty circuit board interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the presence of jackscrews and exact contact count. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Check current lifecycle status as manufacturing schedules may vary. Confirm RoHS compliance requirements against project specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part when a vertical orientation and high pin count are required. The 2mm pitch allows for compact board layouts compared to larger spacing options. Consider the need for jackscrew retention if vibration resistance is critical. Evaluate space constraints on the PCB to accommodate the connector height and footprint.

Headers, Male Pins Part Context

This component is part of Harwin's Datamate J-Tek line, known for its modular design and high reliability. The series supports various termination styles and contact configurations. It is widely used in sectors where connection integrity under harsh conditions is essential. The model represents a standard high-pin-count solution within the product range.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek headers with identical 2mm pitch and 50-position counts. Verify that mating counterparts share the same gender and locking mechanism type. Cross-reference with updated part numbers if original stock is discontinued.
