M80-5005022

Headers, Male Pins Overview

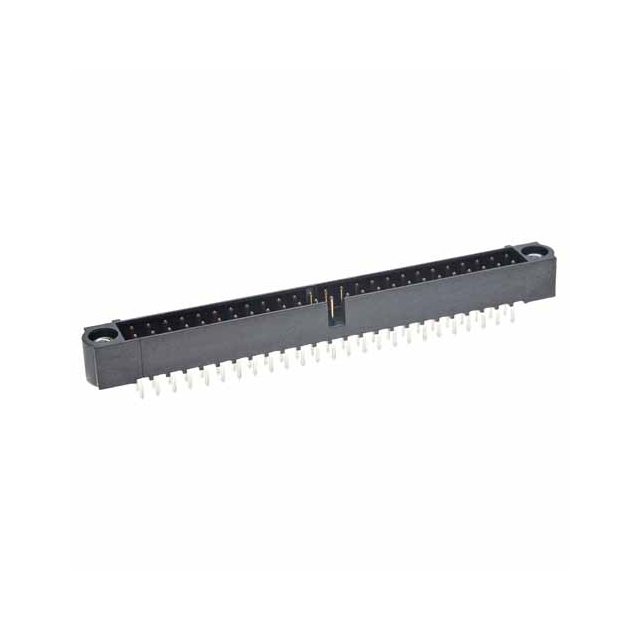

The Harwin M80-5005022 is a Datamate J-Tek male header connector designed for high-reliability power applications. It features a 50-position configuration arranged in a dual-row format (25+25). The component utilizes a 3mm pitch and is specified with vertical orientation for board mounting. It includes integrated jackscrews to ensure secure mechanical retention during operation. The contacts are tin/lead plated, supporting standard surface mount or through-hole assembly processes within the Datamate ecosystem.

Headers, Male Pins Feature Summary

• High-reliability Datamate J-Tek series construction
• Secure mechanical retention via integrated jackscrews
• Dual-row 25+25 position layout
• Vertical orientation design

Headers, Male Pins Applications

• Power supply units
• Embedded systems
• Automotive solutions

Headers, Male Pins Procurement Notes

Verify the specific plating composition and RoHS compliance status against the manufacturer's latest datasheet before integration. Confirm that the 3mm pitch and vertical orientation align with the target PCB footprint requirements. Ensure that the jack screw mechanism is compatible with the enclosure design constraints. Cross-reference the contact material specifications with environmental regulations applicable to the final product deployment region.

Headers, Male Pins Selection Notes

Select this model when a robust, vertically oriented male header with mechanical locking is required. The 3mm pitch distinguishes it from the standard 2mm Datamate variants. Consider the 50-contact capacity for high-density power distribution needs. Evaluate the tin/lead plating suitability against soldering profiles and long-term corrosion resistance requirements in the operating environment.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek family, which is engineered for demanding industrial and automotive environments. The series is characterized by its secure latching mechanisms and high current carrying capabilities per contact. The M80-5005022 specifically addresses applications requiring vertical interconnection with enhanced mechanical stability provided by the jack screw feature.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 3mm pitch, 50-position count, male pin type, and vertical orientation. Verify compatibility of the jack screw interface with mating housings. Generic 2mm pitch connectors are not suitable replacements due to dimensional differences.
