M80-5005042

Headers, Male Pins Overview

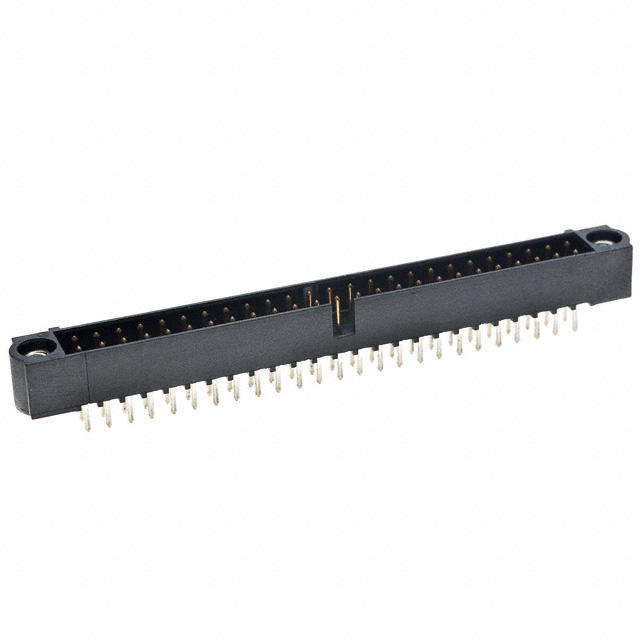

The Harwin M80-5005042 is a Datamate J-Tek series male header connector designed for through-hole mounting. It features a 2.00 mm pitch and a 2x25 (50 position) contact layout. The connector utilizes phosphor bronze contacts with gold plating and a black polyphenylene sulfide (PPS) housing. It includes integrated jackscrews for secure mating and is rated for 3 A current at +125 °C maximum operating temperature.

Headers, Male Pins Feature Summary

• Integrated internally threaded jackscrews provide positive locking between mating connectors
• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance
• Polyphenylene sulfide housing offers high thermal stability and mechanical strength

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• Test and measurement equipment needing secure interconnects
• Automotive electronics applications demanding high reliability

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact tail length, jack screw type, and plating specifications. Ensure compatibility with mating female headers from the same Datamate J-Tek family. Confirm RoHS compliance status as indicated in current datasheets before procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical through-hole male header with integrated jackscrews is required. The 2.00 mm pitch and 50-position count suit dense power or signal routing. Verify PCB thickness and tail length requirements match the specific variant's mechanical dimensions.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek product line by Harwin Inc., specialized for high-reliability interconnects. The series is characterized by its modular design, allowing various combinations of rows, positions, and termination styles. It is widely used in environments where vibration resistance and secure connection are critical.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific configuration. Cross-reference only within the Harwin Datamate J-Tek family using identical pitch, position count, and termination style.

Headers, Male Pins FAQ

What is the contact material and plating?

The contacts are made of phosphor bronze with a gold plating finish.

Does this connector include jackscrews?

Yes, the M80-5005042 is fitted with internally threaded jackscrews for secure mating.
