M80-5010642

Headers, Male Pins Overview

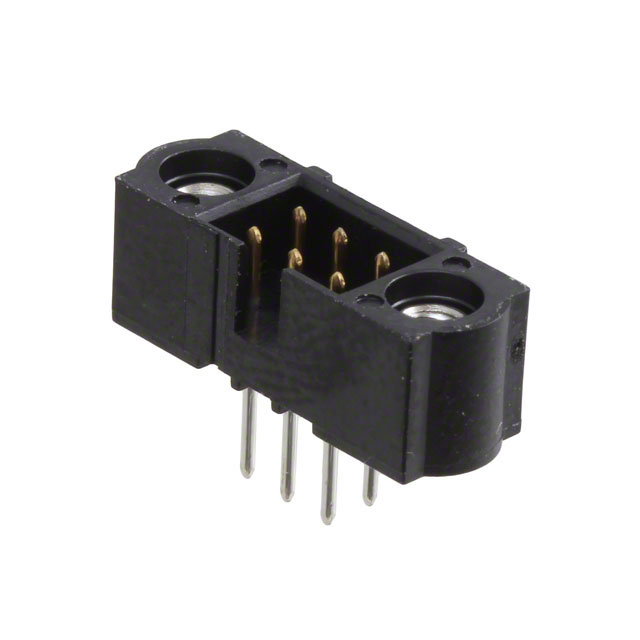

The M80-5010642 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with 6 positions arranged in a double row (3+3). The connector utilizes a 2.00mm pitch for mating and a 2.00mm row spacing. It incorporates internally threaded jackscrews for secure locking. The contacts are gold-plated phosphor bronze, while the housing is black polyphenylene sulfide reinforced with glass fiber. Rated for 120V and 2.2A, it operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Double-row straight design with internally threaded jackscrews for reliable mechanical retention.
• Gold-plated phosphor bronze contacts ensure stable electrical performance.
• Black PPS housing provides high thermal stability and UL94 V-0 flammability rating.

Headers, Male Pins Applications

• General purpose board-to-board interconnections
• Industrial control systems requiring robust locking mechanisms
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, termination type, and locking mechanism configuration. Ensure compatibility with mating receptacles regarding stacking height and keying options. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with screw-locking capability is required for compact double-row layouts. The 2.00mm pitch suits applications needing dense connectivity without excessive board space consumption. Consider the 120V voltage rating and 2.2A current capacity to ensure adequate electrical margins for the target circuit design requirements.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for its small form factor and high reliability. The M80-5010642 specifically represents a standard vertical header variant within this family, designed for through-board assembly. It complements matching female receptacles and cable assemblies to create complete interconnect solutions for various electronic environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek headers with identical 6-position double-row configurations and jackscrew locking. Verify that alternative parts match the 2.00mm pitch, vertical orientation, and compatible stacking heights to ensure mechanical and electrical interchangeability.

Headers, Male Pins FAQ

What is the locking mechanism used in this connector?

The M80-5010642 uses internally threaded jackscrews for secure locking between the header and mating receptacle.

What is the material composition of the contacts?

The contacts are made from phosphor bronze with a gold plating finish to ensure conductivity and corrosion resistance.
