M80-5011042

Headers, Male Pins Overview

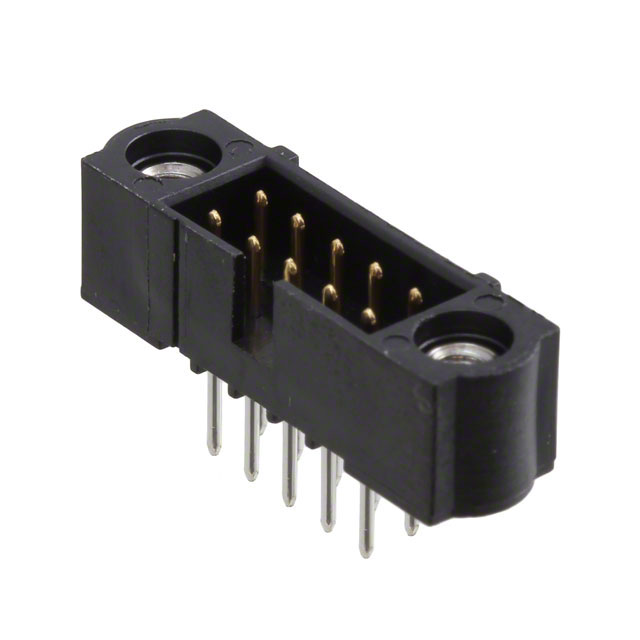

The M80-5011042 is a Datamate J-Tek series board-to-board connector header manufactured by Harwin Inc. It features a 10-position configuration with two rows and a 2mm pitch. Designed for vertical through-hole mounting, the component utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, providing structural integrity and UL94 V-0 flammability rating. Rated for 120V and operating within a temperature range of -55°C to 125°C, it supports secure interconnections in demanding environments.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper or phosphor bronze contact design ensures connection integrity under vibration and shock.
• Robust PPS insulator material offers high thermal stability and chemical resistance for harsh industrial conditions.
• Vertical orientation facilitates efficient PCB space utilization in dense electronic assemblies.

Headers, Male Pins Applications

• Automotive electronics systems
• Military and defense equipment
• General industrial control units

Headers, Male Pins Procurement Notes

Verify the specific contact material specification against the official datasheet, as variations exist between beryllium copper and phosphor bronze variants within the M80 family. Confirm that the ordering suffix matches the required pin length and locking mechanism. Ensure compatibility with mating receptacles from the same Datamate J-Tek series to maintain proper alignment and electrical performance standards.

Headers, Male Pins Selection Notes

Select this component when a vertical, through-hole header is required for board-to-board connections. The 2mm pitch allows for moderate density routing. Consider the operating temperature range and voltage rating to ensure compliance with system requirements. Verify mechanical stacking height constraints and mating force specifications before finalizing the design integration.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for durability in high-load applications. The M80-5011042 specifically serves as a male header counterpart to female receptacles. Its design emphasizes longevity and resistance to environmental stressors, making it suitable for critical infrastructure where maintenance access is limited.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M80 series headers with matching 10-position, 2-row, 2mm pitch configurations. Ensure identical mounting style and contact plating thickness when evaluating alternative part numbers for direct replacement scenarios.
