M80-5011842

Headers, Male Pins Overview

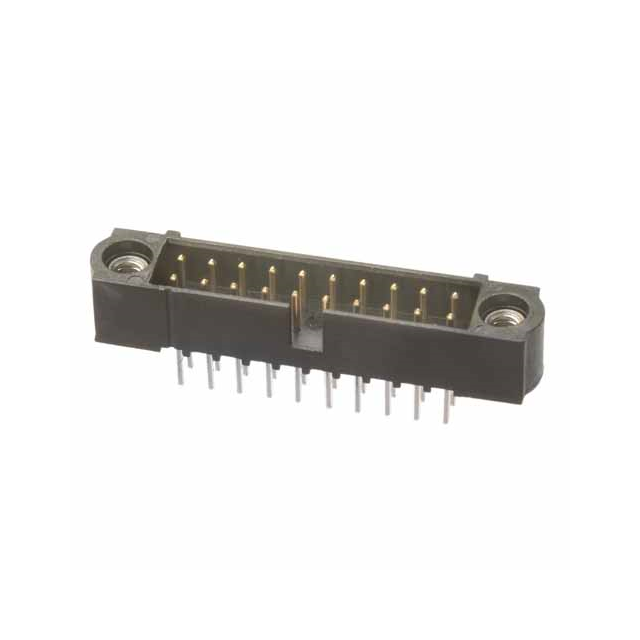

The M80-5011842 is a vertical through-hole header connector from the Harwin Datamate J-Tek series. It features 18 positions (9+9) with a 2.00mm pitch and phosphor bronze contacts. The mating contacts are gold-plated, while the tail contacts are tin-plated. Rated for 120V and 2.2A, it utilizes a push-turn locking mechanism and includes keying and flange features. Operating temperature ranges from -55°C to 121°C.

Headers, Male Pins Feature Summary

• Push-turn locking mechanism for secure connection
• Keyed design prevents misalignment
• Includes mating flange for panel or board mounting
• Vertical orientation for space-efficient assembly

Headers, Male Pins Applications

• Industrial control systems
• Automotive electronics
• Military equipment
• General purpose interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix against the official datasheet to confirm pin count and plating specifications. Ensure compatibility with the corresponding socket counterpart within the same Datamate J-Tek family. Confirm that the required stacking heights align with the available options listed in the manufacturer's documentation before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header with a robust mechanical lock is required. The 2.00mm pitch supports moderate current loads suitable for signal and low-power applications. Consider the available stacking heights to ensure proper clearance with adjacent components on the PCB.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-density interconnects. It is designed for board-to-board or cable connections. The series offers various configurations including different row counts and locking styles to meet diverse spatial and electrical requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 18-position count, 2.00mm pitch, and vertical orientation. Verify that any alternative maintains the push-turn locking mechanism and compatible mating flange dimensions to ensure mechanical interchangeability.
