M80-5020642

Headers, Male Pins Overview

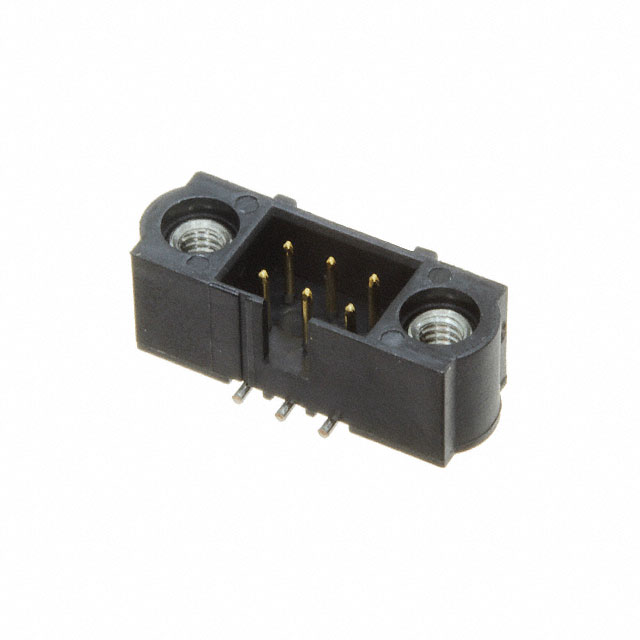

The M80-5020642 is a surface-mount header from the Datamate J-Tek series, manufactured by Harwin Inc. It features a 6-position configuration with a 2.00mm pitch and operates at a voltage rating of 800V. The connector utilizes gold-plated phosphor bronze contacts housed in black PPS insulation. Designed for board-to-board or cable applications, it supports mating stacking heights of 7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, and 15.1mm.

Headers, Male Pins Feature Summary

• Surface-mount termination for automated PCB assembly
• Push-pull locking mechanism for secure connection
• Keying slot and mating flange for alignment

Headers, Male Pins Applications

• Board-to-board interconnects
• Cable-to-board connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm exact stacking height requirements and contact plating specifications. Ensure compatibility with mating sockets within the Datamate J-Tek family. Confirm RoHS compliance status through manufacturer documentation prior to integration.

Headers, Male Pins Selection Notes

Select this component for high-voltage applications requiring robust surface-mount headers. Evaluate required stacking heights against available options. Consider the push-pull locking style for vibration resistance. Verify current ratings align with circuit demands.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for compact, high-density interconnect solutions. The series offers various configurations including vertical and horizontal orientations with different locking mechanisms. This specific model provides a low-profile surface-mount option for space-constrained designs.

Headers, Male Pins Replacement Considerations

Compatible mates include M80-4C10605FC and M80-4D10605FC. Verify mechanical interface and electrical ratings before substitution.
