M80-5021042

Headers, Male Pins Overview

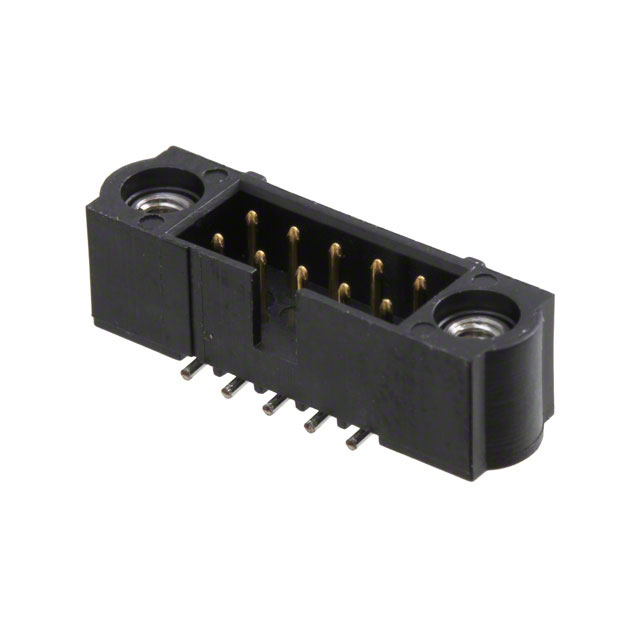

The Harwin M80-5021042 is a Datamate J-Tek straight surface-mount header with 10 positions. It features male pin contacts made of brass with gold plating, housed in black polyphenylene sulfide (PPS). The connector has a 2 mm pitch and supports a current rating of 3 A. It operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• High-reliability four-finger beryllium copper contact design for secure mating
• Integrated keying slot and mating flange for precise alignment
• Robust construction resistant to shock, bump, and vibration

Headers, Male Pins Applications

• Harsh environment industrial equipment
• Medical devices requiring high reliability
• Aerospace and defense systems

Headers, Male Pins Procurement Notes

Verify the specific datasheet version and RoHS/REACH compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the surface-mount footprint matches your PCB design requirements. Ensure the operating temperature range aligns with your application's thermal profile.

Headers, Male Pins Selection Notes

Select this component when a high-reliability, surface-mount board-to-board connection is required. It is suitable for applications demanding resistance to mechanical stress such as shock and vibration. Consider the 2 mm pitch and 10-position count to ensure compatibility with existing system designs.

Headers, Male Pins Part Context

This part belongs to the Datamate M80 series, designed for safety-critical applications. The series is known for durability under high load, shock, and acceleration. It utilizes high-reliability four-finger beryllium copper contacts to maintain connection integrity in恶劣 environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek headers with matching 2 mm pitch, 10 positions, and SMT termination. Verify electrical ratings and housing material compatibility before substitution.
