M80-5021242

Headers, Male Pins Overview

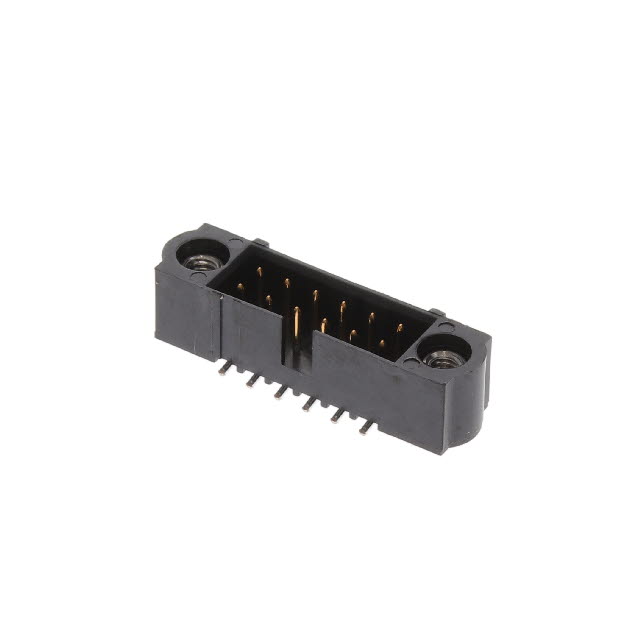

The Harwin M80-5021242 is a Datamate J-Tek series header connector designed for surface mount technology. It features a vertical board-to-board or cable configuration with 12 positions arranged in a dual-row layout (6+6). The connector utilizes a 2.00mm pitch and includes a keying slot for precise alignment. Constructed with phosphor bronze contacts that are gold-plated, it ensures reliable signal transmission. The housing is made of black polyphenylene sulfide (PPS) reinforced with glass fiber, offering UL94 V-0 flammability rating. It supports a rated voltage of 120V and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface mount vertical design for automated PCB assembly
• Gold-plated phosphor bronze contacts for corrosion resistance
• Keyed housing for secure mechanical alignment
• High-temperature PPS insulation material

Headers, Male Pins Applications

• Board-to-board interconnects in compact electronics
• Wire harness connections requiring SMT termination
• Industrial control modules
• Automotive electronic sub-systems

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm exact pin count, keying position, and plating thickness. Ensure the selected variant matches the required surface mount footprint and thermal profile specifications for your manufacturing process. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and lead times.

Headers, Male Pins Selection Notes

Select this component when a vertical surface mount header is required for space-constrained designs. The 2.00mm pitch allows for high density while maintaining robust mechanical locking via the push-pull mechanism inherent to the Datamate J-Tek system. Consider the 12-position capacity and dual-row arrangement for efficient routing in multi-layer boards.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability. The M80-5021242 specifically addresses the need for surface mount solutions within this series, bridging the gap between traditional through-hole headers and modern SMT requirements. It complements mating sockets and wire harness assemblies within the same ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M80-50xxxxx series variants with matching 12-position SMT configurations. Verify compatibility with mating connectors from the same Datamate J-Tek line to ensure proper engagement and electrical continuity.
