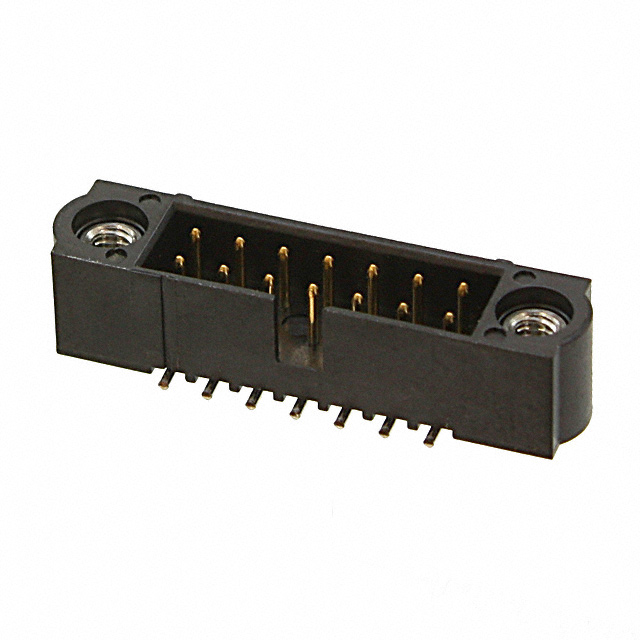

M80-5021442

$13.21

Description：CONN HEADER SMD 14POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:62ffa88bc837 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5021442 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5021442

Description：CONN HEADER SMD 14POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5021442

M80-5021442

Headers, Male Pins Overview

The M80-5021442 is a 14-position, dual-row socket connector from the Harwin Datamate J-Tek series. It features a 2.00mm pitch and is designed for vertical through-hole PCB mounting. The housing is constructed from black Polyphenylene Sulfide (PPS) with glass fiber reinforcement, rated UL94 V-0. Contacts are made of beryllium copper with gold plating on the mating interface and tin plating on the termination pins. It supports board-to-board or wire-to-board applications with a rated voltage of 800V.

Headers, Male Pins Feature Summary

Secure locking mechanism utilizing top screws, mating flanges, and installation flanges for robust connection stability.
Polarized keying design ensures correct alignment during assembly to prevent misconnection.
High-reliability construction suitable for demanding automotive, general, and military environments.

Headers, Male Pins Applications

Automotive electronic systems
General industrial equipment
Military hardware

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to ensure exact configuration matching. Confirm that the ordering suffix corresponds precisely to the required pin count, contact plating, and housing style. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-reliability, vertically mounted socket is required for 2mm pitch interconnects. Ensure compatibility with the corresponding Datamate J-Tek male header. Verify that the through-hole mounting style aligns with the target PCB layout and that the 800V rating meets the circuit requirements.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek family, known for secure locking and high performance in harsh conditions. It complements other parts in the series, such as the M80-4051442, which shares similar electrical characteristics but differs in mechanical orientation or packaging specifications within the broader connector ecosystem.
