M80-5090642

Headers, Male Pins Overview

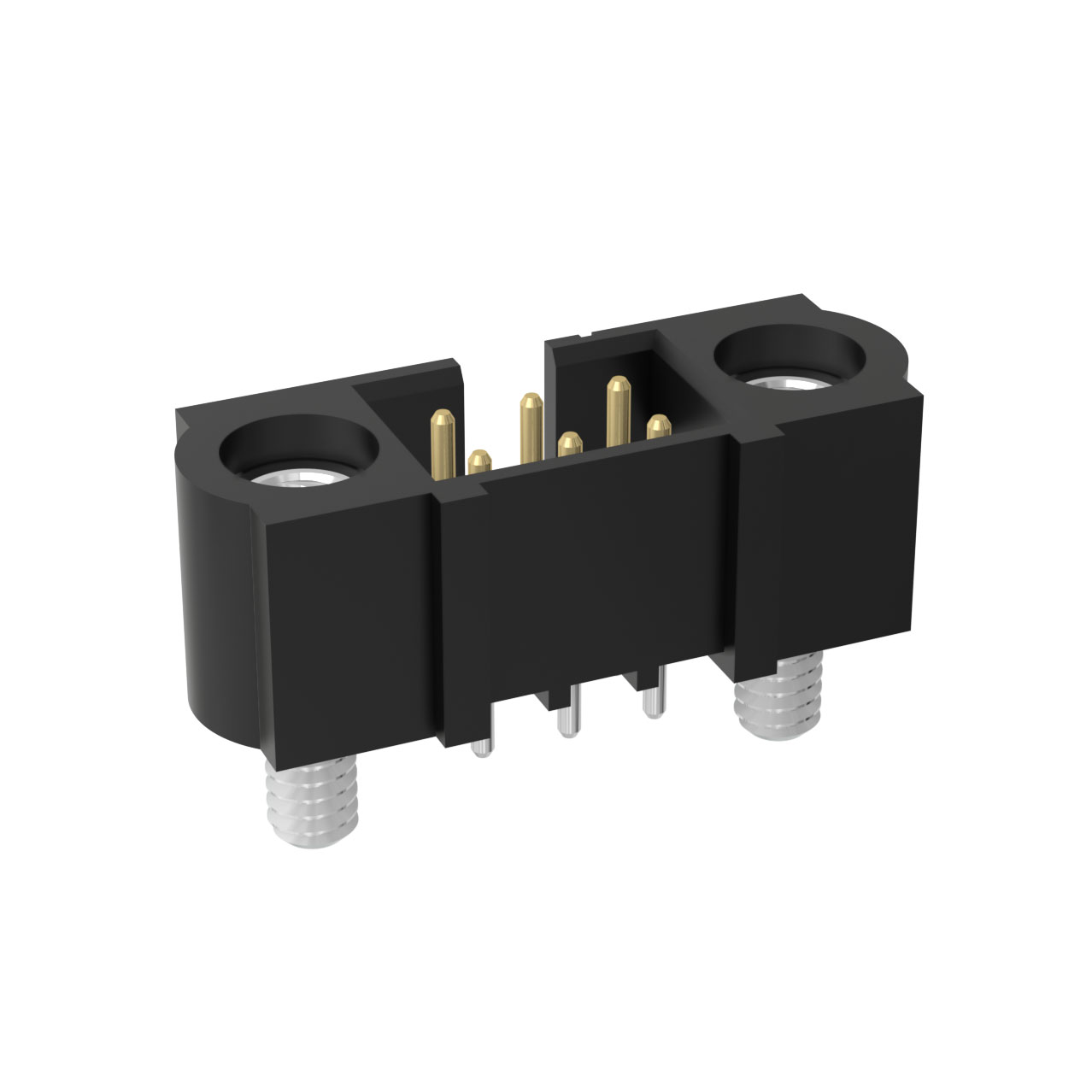

The M80-5090642 is a Datamate J-Tek series connector header manufactured by Harwin Inc. It features a vertical through-hole mounting style with six male pin contacts arranged in two rows. The mating pitch is 0.079 inches (2.00mm). The component has a voltage rating of 800V AC/DC and includes specific hardware for secure assembly.

Headers, Male Pins Feature Summary

• Vertical through-hole design for board-to-board or cable connections
• Datamate J-Tek series with push-pull locking mechanism
• High voltage rating suitable for demanding applications

Headers, Male Pins Applications

• Industrial control systems
• Automotive electronics
• Military equipment

Headers, Male Pins Procurement Notes

Verify the exact part number against official Harwin documentation to confirm the inclusion of the specified 101 hardware set. Ensure compatibility with mating sockets from the same Datamate J-Tek family. Check current stock availability as lead times may vary based on manufacturer production schedules.

Headers, Male Pins Selection Notes

Select this component when a vertical, high-voltage header with a 2mm pitch is required. Consider the total stacking height requirements relative to mating connectors. Verify that the phosphor bronze contact material meets the environmental and durability needs of the target application.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek line, known for compact interconnect solutions. It utilizes a shrouded design with keying options to prevent misalignment. The black PPS housing provides thermal stability and flame resistance up to UL94 V-0 standards.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include models from the M80-4C106xxFC series. Ensure any substitute maintains the 2mm pitch and 800V rating. Verify mechanical fit within the existing enclosure constraints.
