M80-5091442

Headers, Male Pins Overview

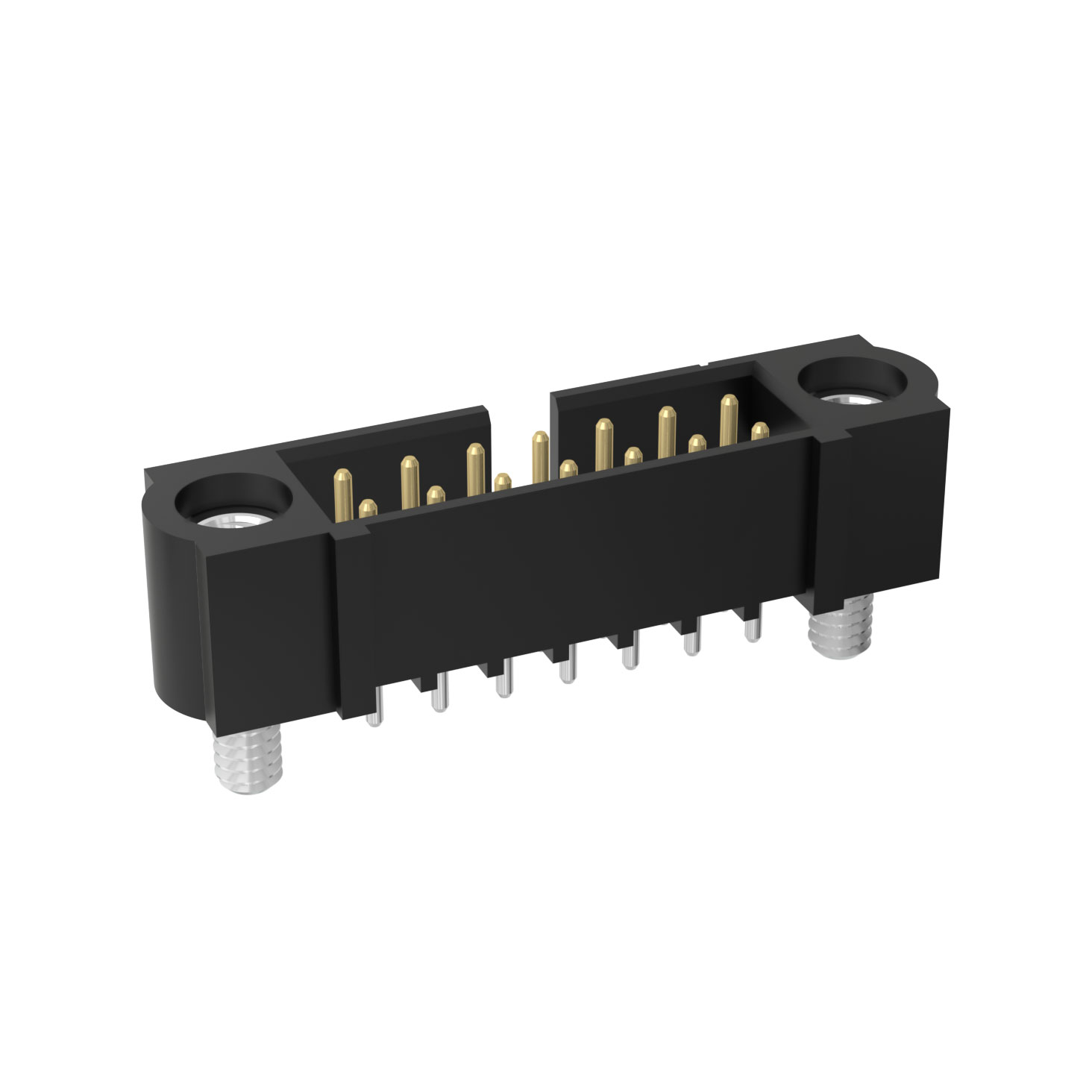

The Harwin M80-5091442 is a 14-position male pin header from the Datamate J-Tek series. It features a 2mm (0.079 inch) pitch and double inline layout. The connector utilizes through-hole termination for PCB mounting. Contacts are made of phosphor bronze with gold plating on the mating interface. The housing is black polyphenylene sulfide (PPS) reinforced with glass fiber, rated UL94 V-0. It includes jackscrew locking mechanisms for secure attachment.

Headers, Male Pins Feature Summary

• Jackscrew locking mechanism provides secure mechanical retention between mated connectors.
• Gold-plated phosphor bronze contacts ensure reliable electrical performance in demanding environments.
• High-temperature PPS housing offers robust insulation and flame resistance.

Headers, Male Pins Applications

• Automotive electronic systems
• General industrial equipment
• Military applications

Headers, Male Pins Procurement Notes

Verify the specific datasheet version to confirm contact plating thickness and current ratings. Ensure compatibility with mating receptacles regarding jack screw dimensions and keying options. Check for RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this component for high-reliability board-to-board connections requiring positive locking. Suitable for applications needing durable connectors in automotive or military contexts. Consider thermal limits and stacking height requirements when designing the assembly.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for compact, rugged interconnect solutions. The M80 series is widely used in harsh environments where vibration resistance and secure locking are critical. It complements other Harwin connectors like M80-4051442 for complete system integration.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed. Evaluate compatible headers within the same Datamate J-Tek series for potential alternatives with similar pin counts and locking features.
