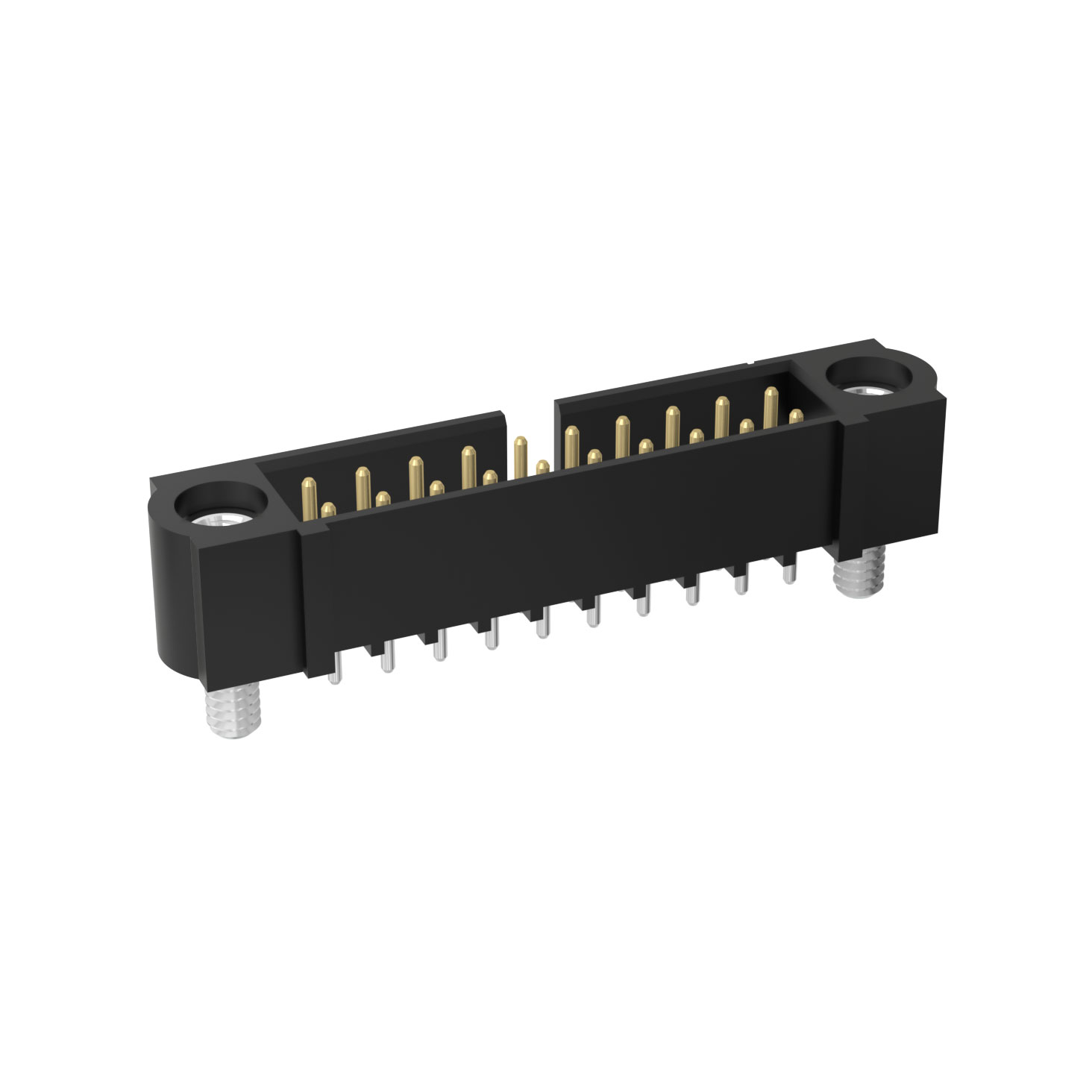

M80-5092042

$8.29

Description：10+10 POS M DIL SHORT TAIL JKSCR
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:6bdfdf8e6214 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5092042 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is 10+10 POS M DIL SHORT TAIL JKSCR. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5092042

Description：10+10 POS M DIL SHORT TAIL JKSCR
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.073" (1.85mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Mounting Flange
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for M80-5092042

M80-5092042

Headers, Male Pins Overview

The M80-5092042 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 20-position (10+10) dual in-line configuration with a 2.00mm pitch. Designed for through-hole vertical mounting, the connector utilizes phosphor bronze contacts with gold plating and PPS insulation. It supports board-to-board or wire-to-board applications within an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

Datamate J-Tek modular system compatibility
Gold-plated phosphor bronze contacts for reliable conductivity
Vertical through-hole termination for secure PCB mounting
High-temperature resistant PPS insulation material

Headers, Male Pins Applications

Industrial control systems
Telecommunications equipment
Automotive electronics
Test and measurement instruments

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official datasheet to confirm contact length and tail specifications. Ensure the ordering part number matches the required pin count and row configuration. Cross-reference the manufacturer's latest documentation to confirm current production status and availability before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density interconnect solution is required for vertical PCB assembly. The 2.00mm pitch offers a balance between signal density and spacing. Consider the mechanical retention provided by the jack screws if vibration resistance is critical for the application environment.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek series, known for its compact size and robust performance. The M80-5092042 specifically addresses needs for vertical through-hole connections in space-constrained designs. Its modular nature allows integration with various mating connectors within the same family ecosystem.
