M80-5092642

Headers, Male Pins Overview

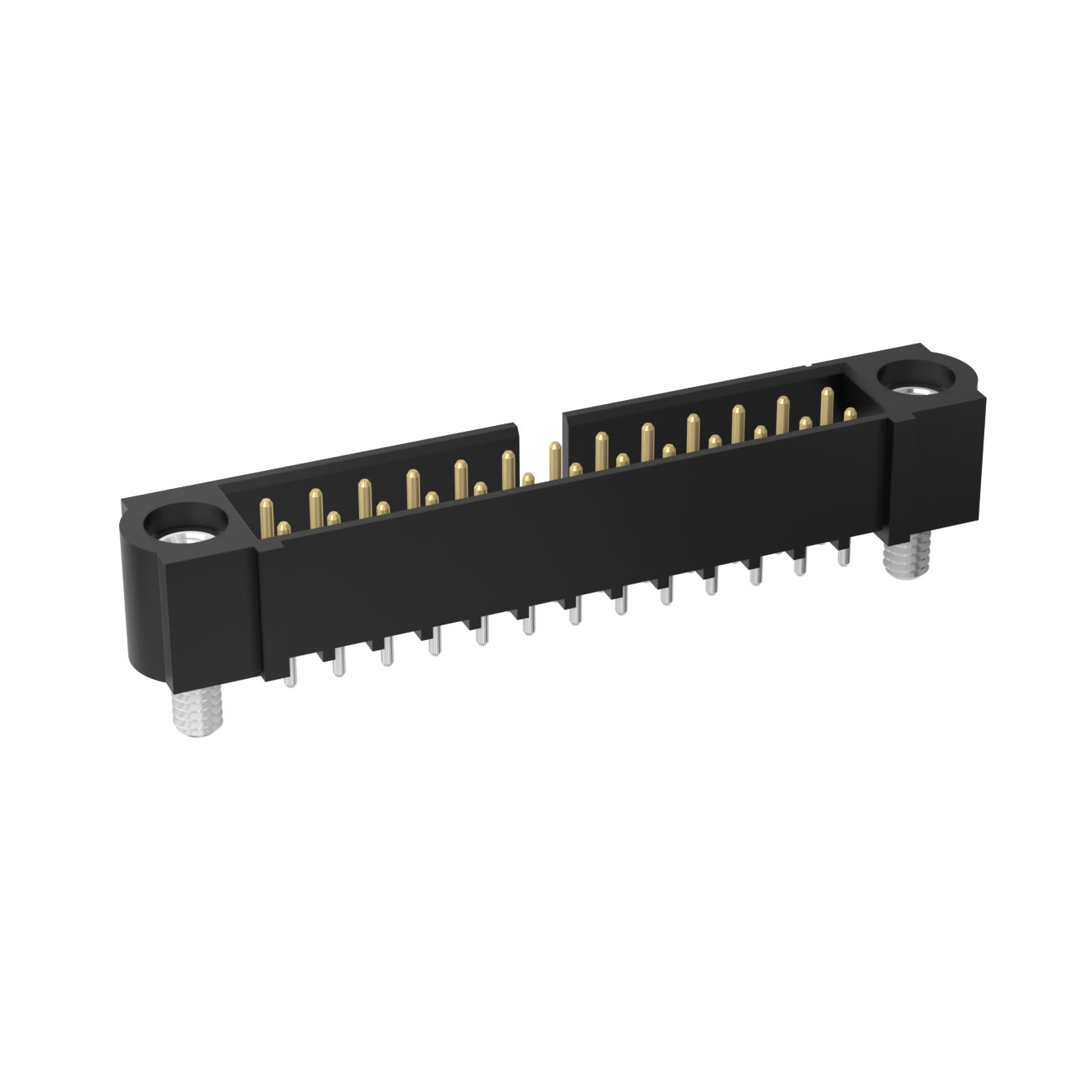

The M80-5092642 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 26-position configuration with a 13+13 pin arrangement in a dual in-line (DIL) format. The connector utilizes a 2.00mm pitch and is designed for vertical through-board mounting. Key specifications include phosphor bronze contacts with gold plating, a black polyphenylene sulfide (PPS) housing reinforced with glass fiber, and UL94 V-0 flammability rating. It supports a temperature range of -55°C to +125°C and incorporates jackscrew locking mechanisms for secure attachment.

Headers, Male Pins Feature Summary

• Dual row DIL male pin configuration with 13+13 positions
• Vertical through-board mounting style with short tail design
• Gold-plated phosphor bronze contacts for reliable conductivity
• Jackscrew locking mechanism ensures secure mating retention

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• Test and measurement equipment needing high-reliability interconnects
• Telecommunications infrastructure utilizing secure signal routing
• Automotive electronics demanding stable performance under vibration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the presence of jackscrews and the exact tail length, as variations exist within the M80-509 series. Ensure compatibility with mating sockets regarding contact gender and locking type. Confirm that the 2.00mm pitch aligns with the target PCB footprint and that the operating temperature range meets the application's environmental requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a secure, screw-locking connection is required for 26-pin signals or power distribution. The vertical orientation suits applications with limited lateral space but sufficient height clearance. Consider the short tail profile if minimizing overall assembly height is critical while maintaining through-board stability. Validate that the gold plating thickness meets the intended cycle life expectations for the mating cycles.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-density interconnect solutions. The M80-5092642 specifically addresses needs for secure, vibration-resistant connections in compact electronic assemblies. Its design emphasizes mechanical reliability alongside electrical performance, making it suitable for demanding environments where standard snap-fit connectors might fail due to shock or thermal cycling.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. Compatible alternatives must match the 2.00mm pitch, 26-position count, vertical orientation, and jackscrew locking feature. Verify that any replacement maintains the same contact material properties and housing flammability rating to ensure equivalent performance and safety compliance.
