M80-5095042

Headers, Male Pins Overview

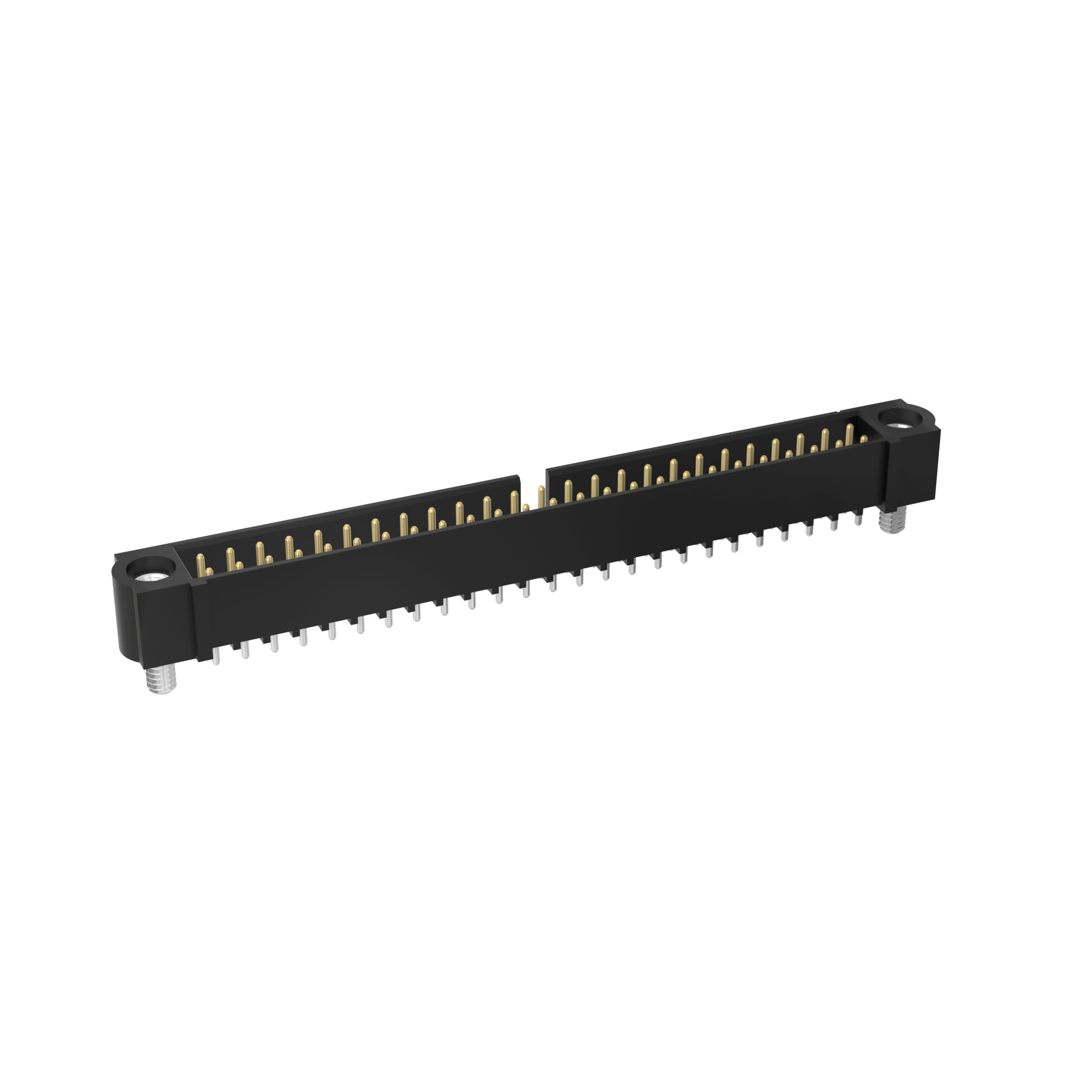

The M80-5095042 is a Datamate J-Tek male header connector featuring 50 positions (25+25) in a dual inline configuration. It utilizes a 2.00mm pitch with horizontal surface mount termination. The component includes internal jackscrews for secure mating and operates within a temperature range of -55°C to +125°C. Rated at 2.2A current and 800VAC/DC voltage, it employs phosphor bronze contacts with gold plating housed in black PPS insulation.

Headers, Male Pins Feature Summary

• Horizontal surface mount design with integrated internal jackscrew locking mechanism
• Dual inline arrangement providing high-density connectivity options
• Robust construction using glass-filled polyphenylene sulfide insulation

Headers, Male Pins Applications

• Industrial control systems requiring secure board-to-board connections
• Test and measurement equipment needing reliable signal integrity
• Automotive electronics applications demanding vibration resistance

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact stacking heights and jack screw configurations. Ensure compatibility with mating sockets from the same Datamate J-Tek series. Confirm that the horizontal SMT footprint aligns with your PCB assembly constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when horizontal mounting space is limited but high connection density is required. The internal jackscrews provide superior retention compared to standard headers. Consider the 2.2A rating for power distribution needs and verify that the 800VAC/DC rating meets circuit isolation requirements for your specific application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and robust mechanical performance. It serves as a male header variant within the broader M80 series, designed for harsh environments. The horizontal orientation distinguishes it from vertical counterparts, offering different spatial integration capabilities for complex electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M80-50xxxxx series headers with matching 50-position counts and horizontal SMT termination. Verify that any alternative maintains the internal jackscrew feature and identical 2.00mm pitch specifications to ensure mechanical and electrical interchangeability without redesigning the host PCB.
