M80-5100605

Headers, Male Pins Overview

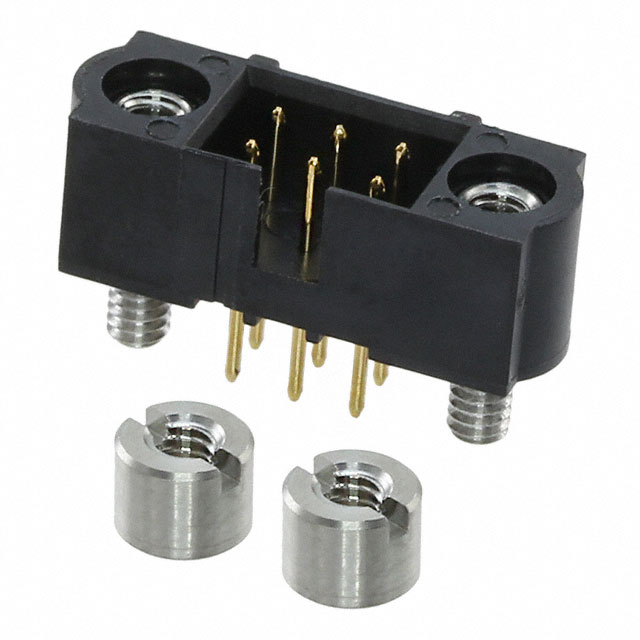

The M80-5100605 is a Datamate J-Tek header connector manufactured by Harwin Inc. It features a 2mm pitch and 6 positions in a 2x3 configuration. Designed for through-hole vertical mounting, it utilizes crimp termination with gold-plated contacts rated for 2.2A current and 800V voltage. The component supports stacking heights of 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, and 14.75mm.

Headers, Male Pins Feature Summary

• Secure and robust connection design suitable for high-reliability applications
• Gold contact finish ensures reliable signal transmission
• Compatible with standard Datamate mating systems

Headers, Male Pins Applications

• High reliability electronic interconnects
• Demanding industrial applications
• Wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm availability and compliance. Check for any recent product change notices or obsolescence alerts. Ensure the required stacking height matches the application needs. Confirm RoHS and REACH status if environmental compliance is mandatory for the project.

Headers, Male Pins Selection Notes

Select this component when a 2-row, 6-position header is required for vertical PCB mounting. Consider the 2mm pitch and crimp termination method during design. Evaluate the available stacking heights to ensure proper clearance. Verify that the 2.2A current rating meets the circuit requirements.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek series, known for secure and robust performance in demanding environments. The series offers various configurations and termination options to support diverse electronic assembly needs while maintaining high reliability standards.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for verified substitute part numbers. Ensure any replacement maintains the same pitch, position count, and mounting style.
