M80-5100622

Headers, Male Pins Overview

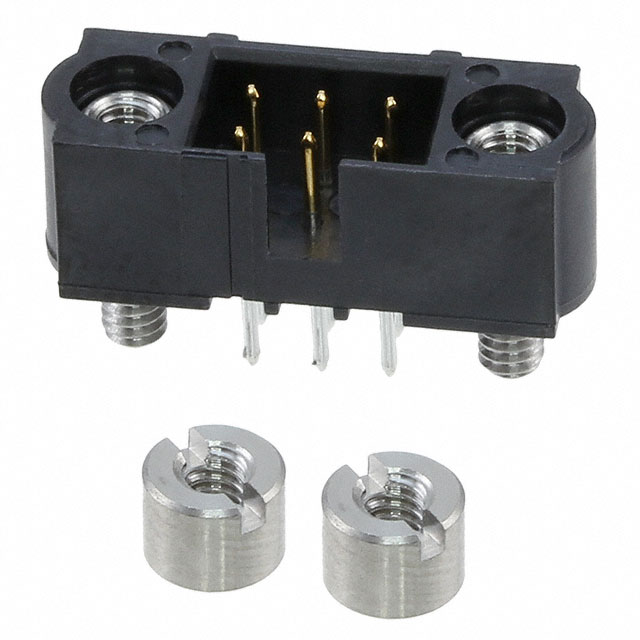

The Harwin M80-5100622 is a Datamate J-Tek wire-to-board header featuring a 2x3 pin configuration with a 2.00mm pitch. It utilizes through-hole straight mounting and phosphor bronze contacts plated with tin/lead. The connector supports an operating temperature range of -55°C to +125°C, carries a UL94 V-0 flammability rating, and offers a rated voltage of 800V with a 2.2A current capacity.

Headers, Male Pins Feature Summary

• Datamate J-Tek series design for high-density interconnects
• Threaded jackscrew locking mechanism for secure mating
• Keyed housing to prevent misalignment during assembly
• Compatible with installation flanges and hardware

Headers, Male Pins Applications

• Industrial control systems requiring robust power connections
• Test and measurement equipment interfaces
• General-purpose board-to-board or cable-to-board linking

Headers, Male Pins Procurement Notes

Verify the specific contact plating finish against project requirements, as the tin/lead variant may not meet lead-free compliance standards for certain regions. Confirm that the threaded jackscrew style aligns with the mechanical constraints of the target enclosure. Ensure the 2.00mm pitch matches the mating connector footprint exactly to avoid assembly errors.

Headers, Male Pins Selection Notes

Select this component when a secure, screw-locking connection is preferred over friction-fit headers. The Datamate J-Tek system allows for mixed pin counts within the same housing family. Consider the insulation height of 5.60mm for clearance requirements. This model is suitable for applications demanding high reliability in vibration-prone environments due to the mechanical locking feature.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high-reliability performance. The M80 series provides various row configurations and termination styles. The M80-5100622 specifically addresses needs for small form-factor, high-voltage connections with secure mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M80-51xxxxx series headers with identical 2x3 pin layouts and jackscrew features. Verify that any alternative maintains the same 2.00mm pitch and through-hole termination style to ensure PCB compatibility.
