M80-5100642

Headers, Male Pins Overview

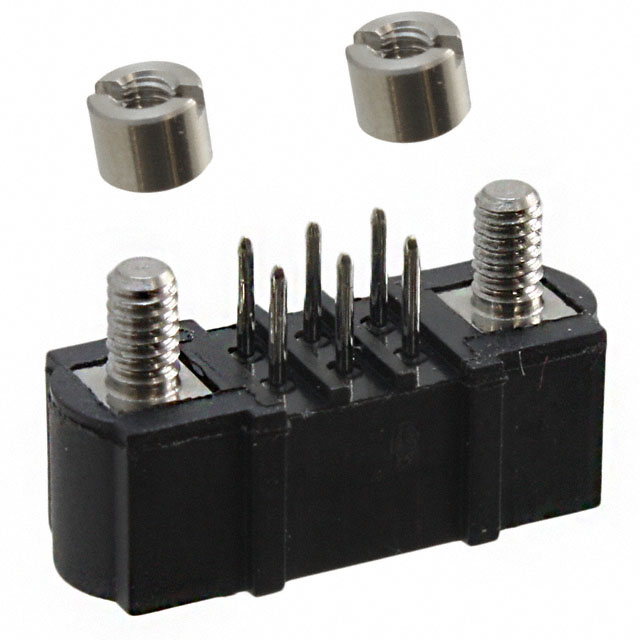

The M80-5100642 is a Datamate J-Tek series male header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with a 2mm pin spacing and a 3mm tail length. The connector provides 6 positions arranged in a dual inline configuration (3+3). Contact materials consist of phosphor bronze with tin plating on the tails and gold plating on the mating interface. It utilizes polyphenylene sulfide (PPS) insulation rated UL94 V-0, supporting a maximum current of 3A and voltage of 120V across an operating temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Datamate J-Tek push-pull locking mechanism ensures secure connection without screws.
• Vertical board-to-board or wire-to-board topology with shrouded housing.
• High-temperature PPS insulation material for thermal stability.
• Gold-plated mating contacts for reliable signal transmission.

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules
• Medical device internal wiring
• General purpose PCB interconnections

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm tail length and plating variations. Ensure compatibility with the corresponding female socket series. Check RoHS compliance status if required by project specifications. Confirm lead times as they may vary based on manufacturing batches. Validate that the selected variant matches the exact mechanical dimensions needed for the enclosure design.

Headers, Male Pins Selection Notes

Select this component when a compact, high-reliability vertical header is needed. The 2mm pitch allows for dense circuit layouts. Consider the 3mm tail length for board stacking requirements. The tin-plated tails facilitate standard soldering processes. Ensure the mating connector belongs to the same Datamate J-Tek family for proper engagement.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its push-pull locking system. It is designed for harsh environments where vibration resistance is critical. The series offers various pin counts and configurations. The M80-5100642 specifically addresses needs for small form-factor vertical connections with high durability.

Headers, Male Pins Replacement Considerations

M80-5T10642MC

Headers, Male Pins FAQ

What is the locking mechanism type?

It uses a push-pull locking system characteristic of the Datamate J-Tek series.

Is the connector polarized?

Yes, it includes keying options to prevent incorrect mating.
