M80-5100842

$12.62

Description：CONN HEADER VERT 8POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:4059af584287 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5100842 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 8POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5100842

Description：CONN HEADER VERT 8POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5100842

M80-5100842

Headers, Male Pins Overview

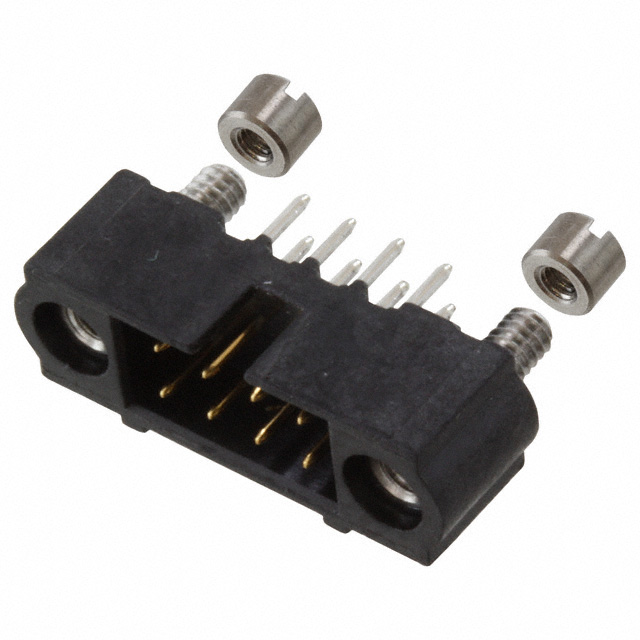

The M80-5100842 is a Datamate J-Tek male header connector featuring 8 positions (4+4) in a double-row vertical through-hole configuration. It utilizes a 2.00mm pitch with black PPS insulation and gold-plated phosphor bronze contacts. Designed for board-to-board or cable applications, it supports a current rating of 2.2A and voltage rating of 800V. The unit operates within a temperature range of -55°C to 125°C and includes slotted nuts for secure mechanical mounting.

Headers, Male Pins Feature Summary

High reliability construction resistant to 100G shock, 40G bump, and 10G vibration
Secure mechanical locking via included slotted nuts for board attachment
Durable gold contact plating ensures stable electrical performance
Robust housing material rated UL94 V-0 for fire safety

Headers, Male Pins Applications

Industrial control systems requiring high vibration resistance
Automotive electronics interfaces
Medical device internal connections
Harsh environment instrumentation

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm pin count, termination style, and mating height requirements. Ensure compatibility with the required slotted nut accessories for proper installation. Cross-reference the RoHS3 compliance status if environmental regulations apply to your manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a vertical through-hole male header with a 2.00mm pitch is required. Consider the 2.2A current rating and 800V voltage limit for circuit design. Evaluate the stacking heights of 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, and 14.75mm to ensure adequate clearance within the assembly enclosure.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for high-density interconnects in demanding environments. It complements female receptacles and other header variants within the same family, providing a standardized solution for reliable signal and power transmission across various industrial and commercial electronic platforms.
