M80-5101022

Headers, Male Pins Overview

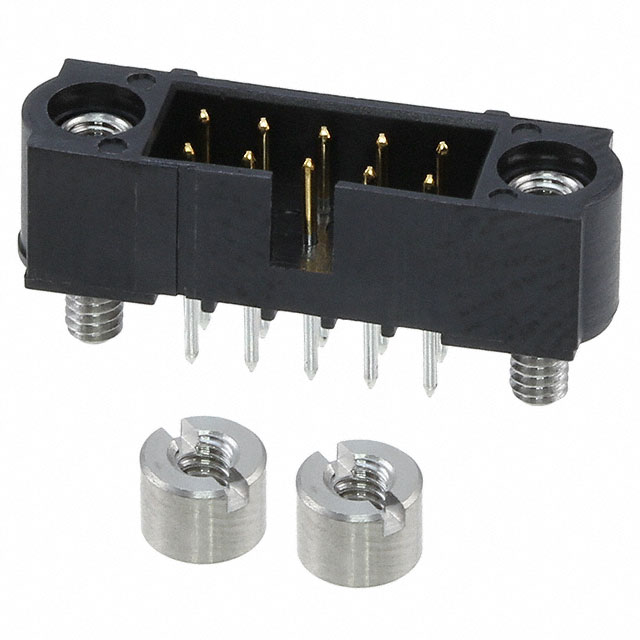

The M80-5101022 is a Datamate J-Tek power connector from Harwin Inc., designed for vertical through-board mounting. It features a male pin configuration with 10 positions arranged in a 5+5 dual inline layout. The connector utilizes a 2 mm (0.079 inch) mating pitch and includes a 3 mm tail length. It is equipped with jackscrews for secure attachment and tin/lead plating on the contacts. This component belongs to the high-reliability Datamate series, intended for robust power-to-the-board applications requiring durable mechanical retention.

Headers, Male Pins Feature Summary

• Vertical through-board mounting style with integrated jackscrews for secure mechanical locking
• Male pin contact configuration with tin/lead surface finish for reliable conductivity
• Dual inline layout providing 10 positions across two rows with 2 mm spacing

Headers, Male Pins Applications

• Power distribution in industrial control systems
• High-reliability aerospace electronic assemblies
• Medical equipment power interfaces
• Automotive electronics power connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the presence of jackscrews and the exact tail length, as these parameters define the mechanical interface. Ensure compatibility with the corresponding female socket counterpart within the Datamate J-Tek series. Confirm that the tin/lead contact finish meets the environmental requirements of the target application, particularly regarding RoHS compliance if lead-free materials are mandated. Cross-reference the 3 mm tail dimension against the PCB copper pad design to ensure proper solder joint formation and mechanical stability during operation.

Headers, Male Pins Selection Notes

Select this model when a vertical orientation with positive mechanical locking via jackscrews is required for power connections. The 10-position capacity suits moderate current distribution needs where space efficiency is critical. Consider the tin/lead finish for general-purpose reliability; however, verify if gold plating is necessary for harsh environments or frequent mating cycles. The 2 mm pitch allows for higher density compared to standard 2.54 mm headers while maintaining robust power handling capabilities suitable for board-to-board or cable-to-board power links.

Headers, Male Pins Part Context

This component is part of the Datamate J-Tek family, known for its ruggedized design and high vibration resistance. The M80 series specifically targets applications demanding superior durability over standard connectors. The inclusion of jackscrews distinguishes it from non-locked variants, offering enhanced security in dynamic environments. As a power connector, it prioritizes mechanical integrity and electrical continuity over high-speed signal transmission characteristics typical of other interconnect families.

Headers, Male Pins Replacement Considerations

• M80-5101022

Headers, Male Pins FAQ

What is the contact material and plating for the M80-5101022?

The contacts are made of phosphor bronze with a tin/lead surface finish.

Does this connector include jackscrews?

Yes, the M80-5101022 specification explicitly includes jackscrews for secure mounting.

What is the tail length of this vertical connector?

The connector features a 3 mm tail length for through-board mounting.
