M80-5101042

Headers, Male Pins Overview

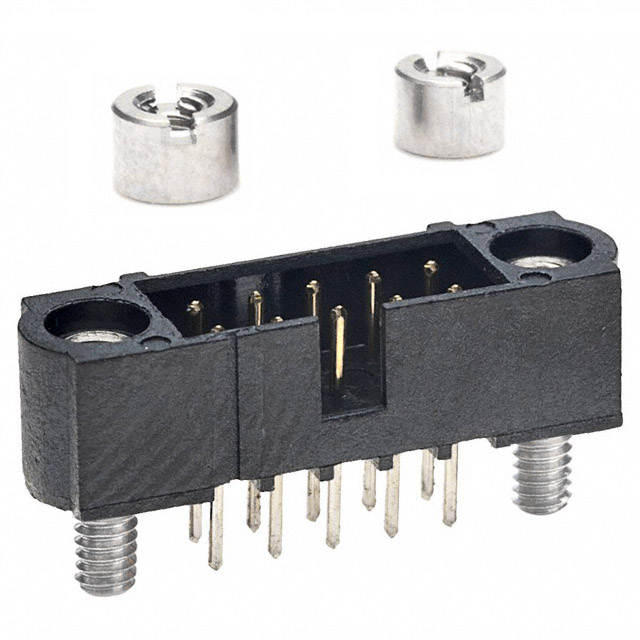

The M80-5101042 is a 10-position male header from the Datamate J-Tek series, designed for board-to-board and wire-to-board interconnects. It features a 2mm pitch with two rows of contacts housed in black PPS insulation. The connector utilizes phosphor bronze pins with gold plating for mating surfaces and tin plating for solder tails. Rated for 120V and 3A, it supports through-hole vertical mounting with a 3mm tail length. Operating temperatures range from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Datamate J-Tek series ensures high reliability under vibration, shock, and acceleration.
• Four-finger beryllium copper contact design maintains connection integrity in harsh environments.
• High durability allows for repeated mating cycles without performance degradation.

Headers, Male Pins Applications

• Automotive electronics
• Military equipment
• General industrial applications

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin configuration and plating specifications. Ensure compatibility with mating receptacles within the same Datamate J-Tek family. Check for any updated environmental compliance certifications required for the target application region before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high-density interconnects are required in demanding environments. The 2mm pitch offers a balance between density and spacing. Consider the through-hole mounting style for robust mechanical stability. Verify that the 3A current rating and 120V voltage limit meet the circuit requirements.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek series, known for its ruggedness and high cycle life. The M80-5101042 specifically serves as a male header, providing the pin interface for mating with female sockets. It is part of a broader ecosystem of compatible connectors designed for secure, reliable connections in critical systems.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek headers with matching 2mm pitch and 10 positions. Ensure the replacement maintains the same row count, mounting style, and contact material specifications to guarantee mechanical and electrical interoperability.

Headers, Male Pins FAQ

What is the contact material for the M80-5101042?

The contacts are made of phosphor bronze with gold plating on the mating surface.

Does this connector support wire-to-board connections?

Yes, the M80-5101042 is designed for both board-to-board and wire-to-board applications.
