Headers, Male Pins Overview

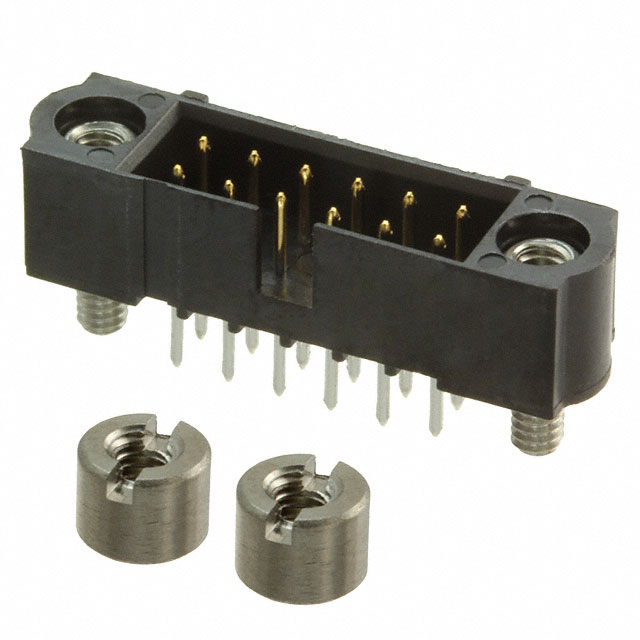

The M80-5101222 is a Datamate J-Tek series male header connector manufactured by Harwin Inc. It features a 12-position configuration with a 2.00mm (0.079 inch) pitch and a 2-row arrangement. Designed for vertical through-hole mounting, the connector utilizes gold-plated contacts to ensure reliable signal transmission. The housing is constructed from black polyphenylene sulfide (PPS), providing structural integrity and thermal resistance suitable for demanding electronic applications.

Headers, Male Pins Feature Summary

• Vertical through-hole design for direct PCB integration
• Gold-plated male pin contacts for corrosion resistance
• Polyphenylene sulfide (PPS) insulation material

Headers, Male Pins Applications

• General purpose board-to-board interconnects
• Industrial control systems
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm contact plating thickness and mating force specifications. Ensure compatibility with corresponding female receptacles within the same Datamate J-Tek family. Confirm that the vertical orientation matches the assembly requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with a 2.00mm pitch is required for through-hole assembly. The 12-position count suits moderate density layouts. Consider the PPS material properties for thermal stability during soldering processes. Verify mating partner availability within the standard J-Tek range.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek line, characterized by high reliability and robust mechanical performance. The series is engineered for harsh environments involving vibration and shock. The M80-5101222 specifically addresses needs for vertical male connections in compact electronic assemblies requiring durable interconnect solutions.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M80-510 headers with identical 12-position, 2-row, vertical through-hole configurations. Ensure mating partners share the same 2.00mm pitch and locking mechanism type.
