M80-5101242

Headers, Male Pins Overview

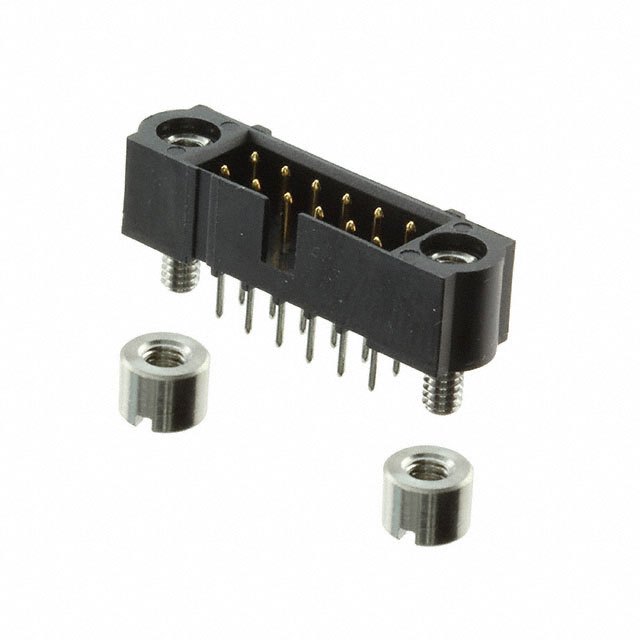

The Harwin M80-5101242 is a Datamate J-Tek male header connector featuring 12 positions arranged in a dual in-line vertical configuration. It utilizes a 2.00mm pitch and is designed for through-hole termination with a 3.00mm tail length. The unit incorporates jackscrew locking mechanisms for secure attachment and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Vertical dual in-line male pin configuration for board-to-board or cable applications
• Integrated jackscrew locking system ensures positive mechanical retention
• Constructed with phosphor bronze contacts and PPS insulation material

Headers, Male Pins Applications

• Industrial control systems requiring robust mechanical retention
• Automotive electronics interfaces
• General purpose power distribution boards

Headers, Male Pins Procurement Notes

Verify the specific tail length specification against design requirements, as this variant features a 3.00mm tail dimension distinct from standard profiles. Confirm that the jackscrew interface aligns with mating receptacle flanges. Ensure compatibility with the designated 2.00mm pitch mating hardware before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with integrated screw-locking capability is required. The 3.00mm tail provides specific standoff height advantages over standard tails. Consider the phosphor bronze contact material for durability in high-cycle mating environments compared to alternative alloys.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series by Harwin Inc., a line of high-reliability connectors known for their modular design and robust locking mechanisms. The series supports various configurations including power and signal applications across diverse industrial sectors.

Headers, Male Pins Replacement Considerations

M80-5101201 is listed as an equivalent product option.
