M80-5101405

Headers, Male Pins Overview

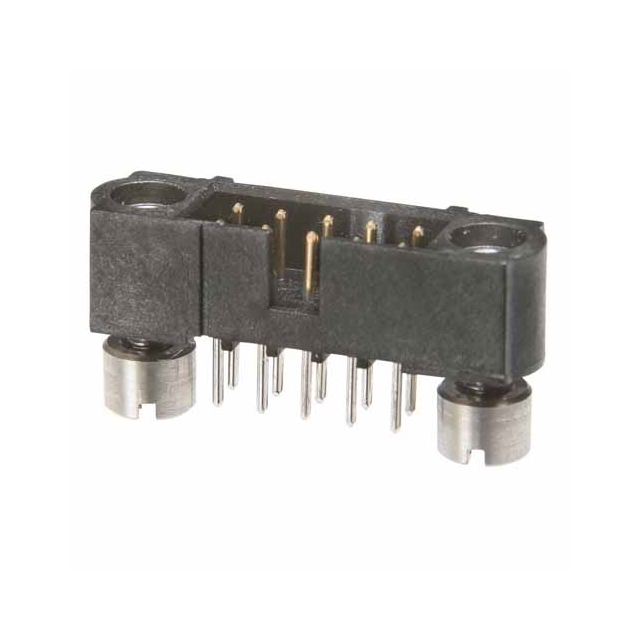

The M80-5101405 is a board connector from the Datamate J-Tek series by Harwin Inc. It features 14 contacts arranged in two rows with a 0.079 inch (2.00mm) pitch. The connector utilizes male straight pins with solder terminals for through-hole mounting. Constructed with a black insulator and M2x0.4 threading, it serves as a receptacle designed for reliable vertical interconnection.

Headers, Male Pins Feature Summary

• Datamate J-Tek series design ensures high reliability under vibration and shock
• Four-finger beryllium copper contact structure maintains connection integrity
• Solder terminal configuration supports secure through-hole PCB installation

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• General purpose electronic assemblies needing durable connections

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the official datasheet to ensure compatibility with the target PCB footprint. Confirm that the solder termination type matches the assembly process requirements. Check for any required mating accessories or locking mechanisms specified in the component documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density, double-row male header is required for through-board applications. The 2.00mm pitch allows for compact layout designs while maintaining sufficient spacing. Ensure the operating environment temperature range aligns with the standard specifications provided in the manufacturer's technical data sheets for long-term stability.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for durability in harsh environments. The series utilizes beryllium copper contacts with gold plating to resist corrosion and wear. It is designed for repeated mating cycles without performance degradation, making it suitable for applications demanding high mechanical endurance and electrical consistency.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify exact dimensional tolerances and contact material specifications if considering alternative sources to ensure functional equivalence.
