M80-5101422

Headers, Male Pins Overview

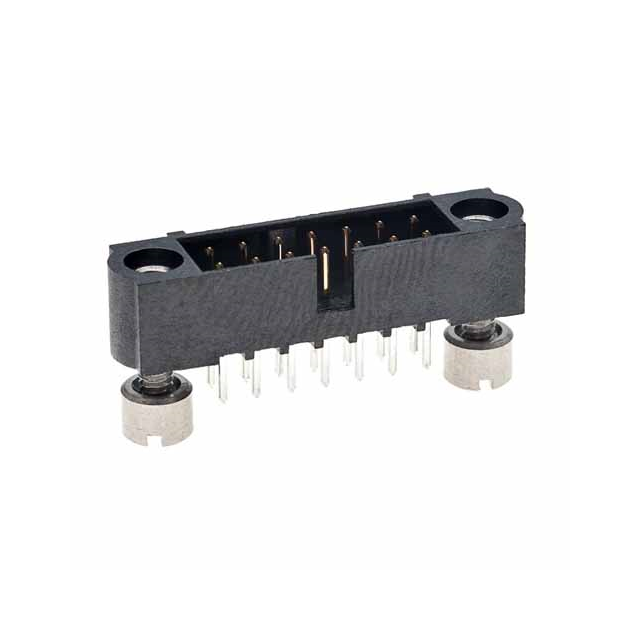

The M80-5101422 is a Datamate J-Tek male header connector designed for vertical through-board mounting. It features a 14-position (7+7) dual in-line configuration with a 2.00mm pitch. The contacts are phosphor bronze pins with tin/lead plating, rated for 3A current and 120V voltage. The housing is black PPS with glass fiber reinforcement, UL94 V-0 rated. It includes jackscrews for secure locking and supports mating stack heights of 3.0mm.

Headers, Male Pins Feature Summary

• Vertical through-board mounting style for direct PCB integration
• Jackscrew locking mechanism ensures secure connection under vibration
• Dual in-line male pin configuration for high-density applications

Headers, Male Pins Applications

• Power to board connections
• Industrial control systems
• Automotive electronics

Headers, Male Pins Procurement Notes

Verify the specific contact plating composition, as sources indicate tin/lead variants. Confirm the exact mating stack height requirement against the 3.0mm specification. Ensure compatibility with the corresponding female receptacle within the Datamate J-Tek series. Check RoHS compliance status if lead-free operation is required for the final assembly.

Headers, Male Pins Selection Notes

Select this component when vertical orientation and robust mechanical locking via jackscrews are necessary. The 2.00mm pitch allows for compact circuit layouts. Consider the 3A current rating for power distribution needs. Verify that the tin/lead contact finish aligns with the manufacturing process and environmental regulations of the target application.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek series, known for high reliability in harsh environments. The M80-5 prefix typically denotes male headers with jackscrew locking. This specific model provides a balance of electrical performance and mechanical security for demanding industrial and automotive sectors.

Headers, Male Pins Replacement Considerations

Compatible counterparts include other Harwin Datamate J-Tek male headers with identical 14-position count, 2.00mm pitch, and jackscrew locking. Ensure the replacement matches the vertical mounting style and similar current/voltage ratings.
