M80-5101805

Headers, Male Pins Overview

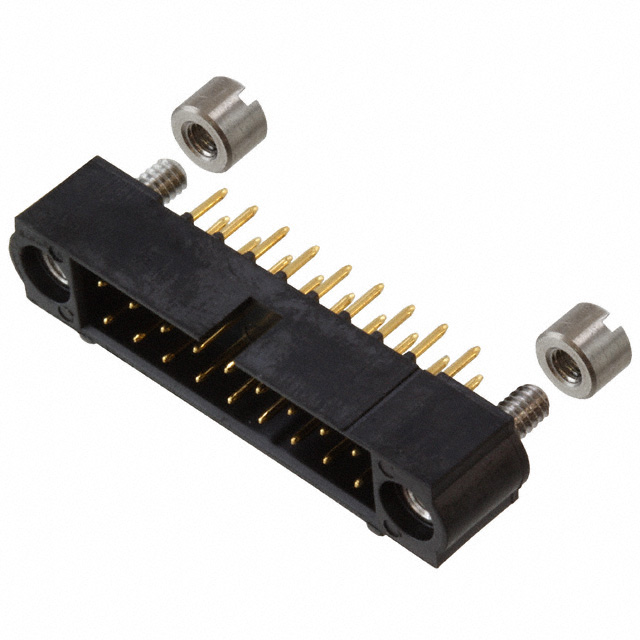

The Harwin M80-5101805 is a Datamate J-Tek series male pin header designed for through-hole mounting. It features an 18-position configuration arranged in two rows with a 2mm pitch and 2mm row spacing. The connector utilizes straight solder pin termination for secure PCB attachment. Constructed as a vertical board-to-board or cable interconnect solution, it provides reliable signal and power connections in demanding environments.

Headers, Male Pins Feature Summary

• Secure and robust design within the Datamate J-Tek high-reliability connector family
• Vertical orientation with straight solder pin termination for through-hole installation
• Dual-row layout providing 18 contact positions with standardized 2mm spacing

Headers, Male Pins Applications

• Board-to-board interconnections requiring high reliability
• Cable-to-board signal and power routing
• Demanding electronic environments needing secure mating

Headers, Male Pins Procurement Notes

Verify the specific part number M80-5101805 against official Harwin documentation to confirm current availability and lead times. Ensure compatibility with existing PCB footprints and mating connectors within the Datamate J-Tek ecosystem before procurement. Cross-reference manufacturer datasheets for precise mechanical dimensions and material specifications.

Headers, Male Pins Selection Notes

Select this component when a vertical, through-hole male header is required for 18-channel interconnects. The 2mm pitch and dual-row format suit space-constrained designs needing robust signal integrity. Consider the Datamate J-Tek series for applications prioritizing secure locking mechanisms and high-reliability performance standards over standard generic headers.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek product line by Harwin Inc., specialized for high-reliability applications. The series is characterized by secure mating solutions and robust construction suitable for harsh environments. As a male pin header, it serves as the counterpart to female sockets within the same connector system, ensuring consistent interface standards across assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 18-position count, 2mm pitch, vertical orientation, and through-hole termination type. Verify that alternative headers support the same current ratings and maintain compatibility with Datamate J-Tek female counterparts. Ensure mechanical footprint alignment to prevent PCB rework.
