M80-5102022

Headers, Male Pins Overview

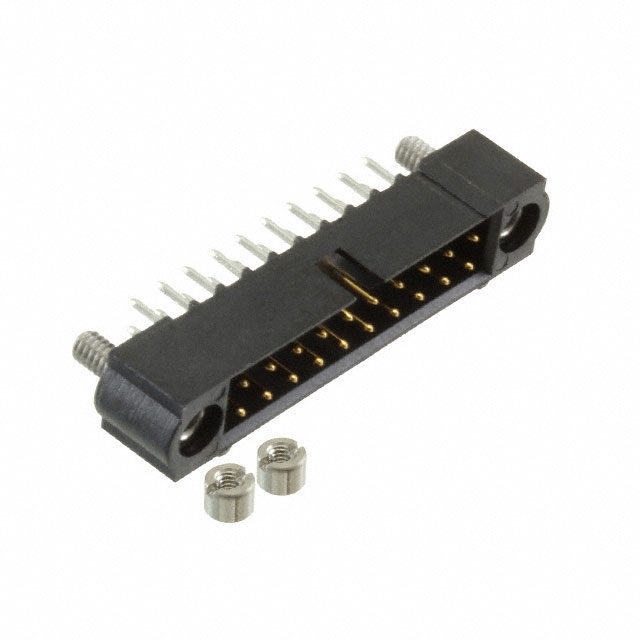

The M80-5102022 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 20-position configuration with a 2.00mm pitch and 3.00mm tail length. Designed for vertical through-hole mounting, it utilizes gold-plated phosphor bronze contacts within a black PPS housing. The component supports board-to-board or wire-to-board applications, operating reliably between -55°C and +125°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style with jackscrew retention
• Gold-plated phosphor bronze contacts for reliable conductivity
• Black polyphenylene sulfide (PPS) insulation material

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official datasheets to confirm contact plating and tail length specifications. Ensure compatibility with mating female connectors in the same series. Confirm that the vertical orientation and jackscrew retention meet the mechanical requirements of the target assembly design.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with jackscrew retention is required. The 2.00mm pitch suits high-density layouts. Verify that the 3A current rating and 120V voltage limits align with circuit demands. Consider the -55°C to +125°C temperature range for environmental suitability.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for compact rectangular connectors. It serves as a male header variant within the broader Harwin interconnect portfolio. The series supports various configurations for diverse industrial and commercial applications requiring robust signal and power transmission.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M80-51xxxxx series headers with matching 20-position counts and 2.00mm pitch. Verify identical jackscrew retention and vertical orientation before substitution.
