M80-5102642

Headers, Male Pins Overview

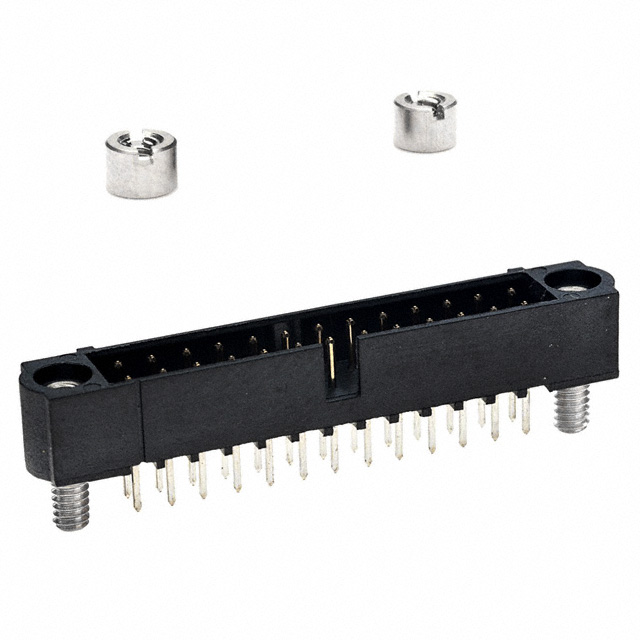

The M80-5102642 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a dual in-line configuration with 26 positions arranged in two rows. The connector utilizes a 2.00mm (0.079 inch) mating pitch and a 2.54mm row spacing. Designed for through-hole mounting, it employs push-turn locking for secure attachment. The contacts are gold-plated phosphor bronze pins with a tin-plated tail finish, housed in black polyphenylene sulfide (PPS) insulation reinforced with glass fiber.

Headers, Male Pins Feature Summary

• Utilizes the Datamate J-Tek series for high-density interconnects
• Features a robust push-turn locking mechanism for secure board-to-board or cable connections
• Constructed with gold-plated contacts to ensure reliable signal transmission
• Housed in UL94 V-0 rated PPS material for thermal stability

Headers, Male Pins Applications

• Low-frequency signal interconnections
• Board-to-board connectivity
• Wire-to-board assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure that the required contact plating thickness and insulation material specifications align with the application's environmental requirements. Cross-reference the datasheet for precise mating partner compatibility within the Datamate J-Tek ecosystem before procurement.

Headers, Male Pins Selection Notes

Select this component when a 26-position male header with a 2mm pitch is required for through-hole applications. The push-turn locking style offers superior retention compared to friction-fit options. Consider the operating temperature range and voltage ratings specified in the official datasheet to ensure suitability for the target electronic environment.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family of connectors from Harwin Inc., designed for compact and reliable electronic interconnections. The series supports various configurations including vertical and horizontal orientations with different locking mechanisms. This specific model represents a standard dual-row header option within the broader product line.

Headers, Male Pins Replacement Considerations

Compatible mating receptacles include models such as M80-4C10605FC and M80-4D10605FC from the same manufacturer series. Verify mechanical dimensions and electrical characteristics of potential substitutes against the original specification sheet.
