M80-5103422

Headers, Male Pins Overview

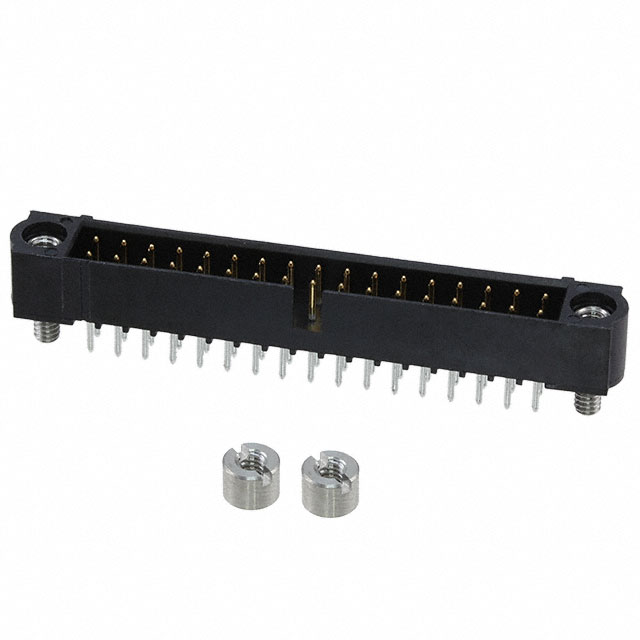

The Harwin M80-5103422 is a Power to the Board connector from the Datamate J-Tek series. It features a vertical male header with 34 positions (17+17) and a 3 mm tail length. The connector utilizes jackscrews for secure locking and is designed for through-board mounting. Contact materials are phosphor bronze with tin plating, ensuring reliable conductivity. The housing is constructed from black polyphenylene sulfide (PPS), offering high thermal stability and mechanical strength suitable for demanding industrial environments.

Headers, Male Pins Feature Summary

• High-current power delivery capability via dedicated power-to-the-board architecture
• Secure mechanical retention using integrated jackscrew locking mechanism
• Robust construction with PPS housing and phosphor bronze contacts

Headers, Male Pins Applications

• Industrial automation control systems
• Power distribution modules in electronic equipment
• High-density board-to-board interconnects requiring secure locking

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm pin count, tail length, and contact plating specifications. Ensure compatibility with mating receptacles within the same Datamate J-Tek family. Confirm that the jackscrew orientation matches the assembly requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this component when high current capacity and secure mechanical fixation are required in vertical configurations. The 3 mm tail length accommodates specific board stack-up heights. Consider the jackscrew feature for applications subject to vibration or shock. Verify that the operating temperature range meets the environmental conditions of the target application.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series by Harwin Inc., a widely used modular connector system. The series offers various configurations including headers, receptacles, and wire housings. The M80-5103422 specifically addresses power distribution needs with its robust design and high current ratings compared to standard signal connectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek vertical male headers with matching 34 positions and jackscrew locking. Ensure identical tail length and contact material specifications. Generic replacements may lack the specific mechanical locking features or current ratings.
