M80-5105022

Headers, Male Pins Overview

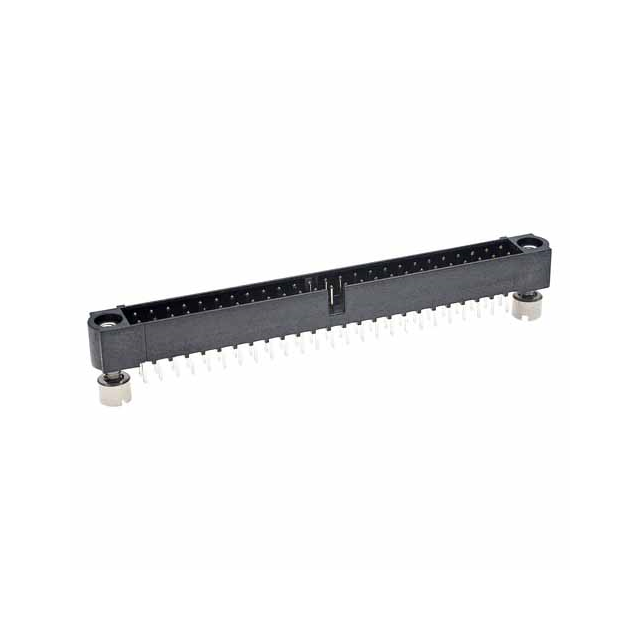

The Harwin M80-5105022 is a Datamate J-Tek power-to-board connector featuring 50 positions (25+25) in a vertical through-hole configuration. It utilizes male pin contacts with a 2mm pitch and includes jackscrews for secure mating. The component supports a current rating of 3A per contact, operates within a temperature range of -55°C to +125°C, and employs gold-plated phosphor bronze contacts housed in black PPS insulation rated UL94 V-0.

Headers, Male Pins Feature Summary

• Vertical through-board mounting style with integrated jackscrews for mechanical retention
• High-reliability four-finger beryllium copper contact design ensuring integrity under vibration
• Shrouded header construction providing keying and protection against misalignment

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics operating in high-vibration environments
• Medical equipment demanding reliable interconnects under shock and acceleration

Headers, Male Pins Procurement Notes

Verify the specific suffix code to confirm plating type and tail length variations. Ensure compatibility with corresponding female receptacles from the same Datamate series. Check RoHS compliance status and REACH SVHC declarations prior to integration into regulated assemblies.

Headers, Male Pins Selection Notes

Select this part for applications necessitating vertical board-to-board power connections with enhanced mechanical security. The 2mm pitch allows for dense packing while maintaining adequate spacing for high-current handling. Consider the jackscrew feature if standard locking mechanisms are insufficient for the operational environment.

Headers, Male Pins Part Context

This component belongs to the Harwin Datamate J-Tek family, designed for harsh environments. The series emphasizes durability through high-mating cycle capabilities and resistance to environmental stressors. It serves as a critical interface in power delivery networks where reliability is paramount.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Cross-reference with other M80-51xxxxx series headers only if electrical and mechanical parameters match exactly.
