M80-5110642

Headers, Male Pins Overview

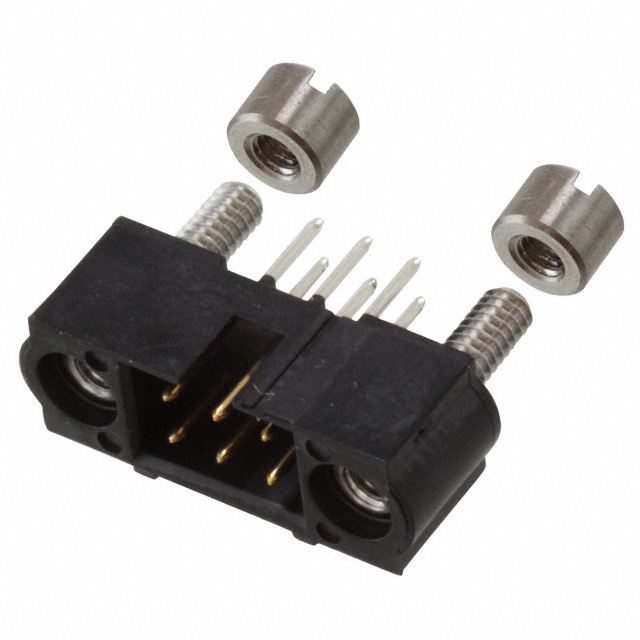

The M80-5110642 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 6-position (3+3) configuration with a 2.00mm pitch and vertical through-hole termination. The unit includes a 4.5mm tail length and utilizes a JS keying system for secure mating. Contacts are made of phosphor bronze with gold plating on the interface and tin on the tails, housed in black PPS insulation rated UL94 V-0.

Headers, Male Pins Feature Summary

• Employs high-reliability four-finger beryllium copper contact technology to ensure connection integrity without signal loss.
• Integrates a JS keying system to prevent incorrect mating and ensure precise alignment during assembly.
• Features a vertical board-to-board or wire-to-board design with a specific 4.5mm tail length for optimized stacking.

Headers, Male Pins Applications

• Board-to-board interconnections requiring secure locking mechanisms
• Wire-to-board connections in compact electronic assemblies
• Industrial control systems demanding high reliability

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official datasheets to confirm tail length and keying options. Ensure compatibility with corresponding female sockets from the same Datamate J-Tek series. Confirm that the tin-plated tails meet soldering process requirements for your manufacturing line.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with a 4.5mm tail and JS keying is required. Compare against other pitch sizes if space constraints differ. Ensure the mating socket supports the 3+3 pin count and matches the specified locking style for reliable performance.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for robust mechanical locking and high cycle life. It is designed for applications where vibration resistance and secure connections are critical, distinguishing it from standard non-locking headers in the Harwin portfolio.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Verify cross-compatibility only with other Harwin Datamate J-Tek series components sharing identical pitch, row count, and keying specifications.
