M80-5111422

Headers, Male Pins Overview

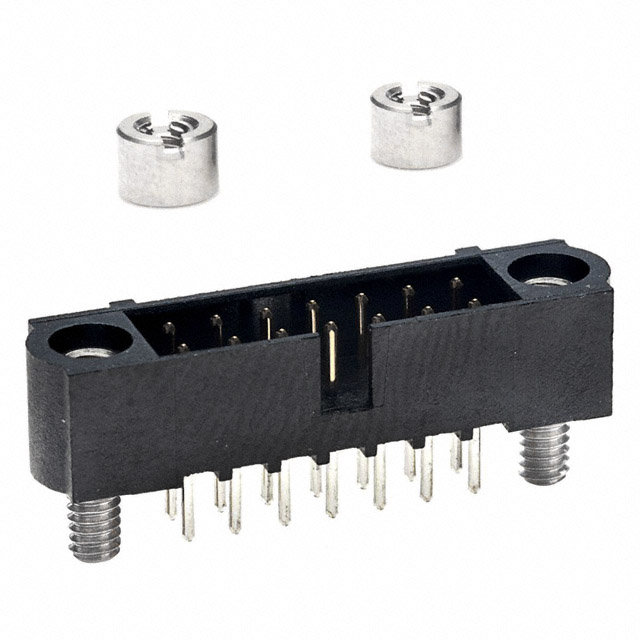

The M80-5111422 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 14-position (7+7) configuration with a 2mm pitch across two rows. Designed for vertical through-hole termination, the component utilizes phosphor bronze contacts with gold plating on mating surfaces and tin on tails. The housing is constructed from black polyphenylene sulfide (PPS), offering UL94 V-0 flammability rating. Electrical ratings include 2.2A current capacity and support for operating temperatures ranging from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for direct PCB integration
• Gold-plated contact surfaces ensure reliable signal transmission
• Polyphenylene sulfide insulation provides thermal stability
• Dual-row male pin configuration facilitates compact circuit design

Headers, Male Pins Applications

• Industrial control system interconnections
• Automotive electronic module linking
• Consumer device internal wiring harnesses
• General-purpose board-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific part number M80-5111422 against official Harwin documentation to confirm compatibility with mating sockets. Ensure that the required contact count and termination type match the target application requirements. Cross-reference datasheet specifications for environmental ratings before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with 14 positions is required. Consider the 2mm pitch constraint and through-hole installation method. Evaluate the 2.2A current rating against load requirements. Confirm that the operating temperature range meets environmental conditions. Compare physical dimensions against available board space.

Headers, Male Pins Part Context

This connector belongs to the Datamate J-Tek series, known for high-density interconnect solutions. The M80-5 prefix indicates a male header variant within the Harwin portfolio. This series supports various termination styles and row configurations for diverse electronic assembly needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include M80-5T114M3 or M80-5T11422 if identical electrical and mechanical properties are required. Verify pin count, pitch, and termination method before substitution.
