M80-5111842

Headers, Male Pins Overview

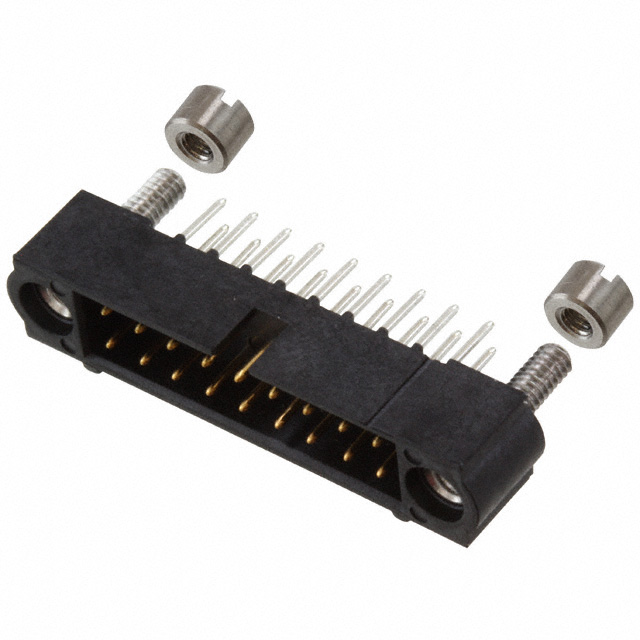

The M80-5111842 is a Datamate J-Tek male header connector designed for vertical through-board mounting. It features 18 positions (9+9) with a 2.00mm pitch and a 3mm tail length. The connector utilizes jackscrews for secure attachment, phosphor bronze contacts with gold plating, and a black PPS housing rated UL94 V-0. Operating temperature ranges from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting configuration with integrated jackscrew locking mechanism
• Gold-plated phosphor bronze contacts ensuring reliable signal transmission
• High-temperature resistant Polyphenylene Sulfide (PPS) insulation material

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• Automotive electronics assemblies demanding high vibration resistance
• General purpose electronic equipment utilizing Datamate J-Tek mating pairs

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm tail length and jack screw presence. Ensure compatibility with corresponding female sockets within the Datamate J-Tek series. Confirm RoHS compliance status via current manufacturer declarations before final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when vertical orientation and mechanical security via jackscrews are required. The 2mm pitch suits dense circuit layouts. Verify that mating connectors match the 9+9 pin configuration and compatible housing materials for optimal thermal and electrical performance in the target application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-density interconnects. It serves as a male header variant within the broader M80 series, providing standardized vertical connectivity solutions for PCB integration in demanding industrial and commercial sectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M80-51xxxxx series headers with matching 18-position counts and jackscrew features. Cross-reference exact tail dimensions and contact plating specifications to ensure functional equivalence without redesigning the host PCB footprint.
