M80-5112642

Headers, Male Pins Overview

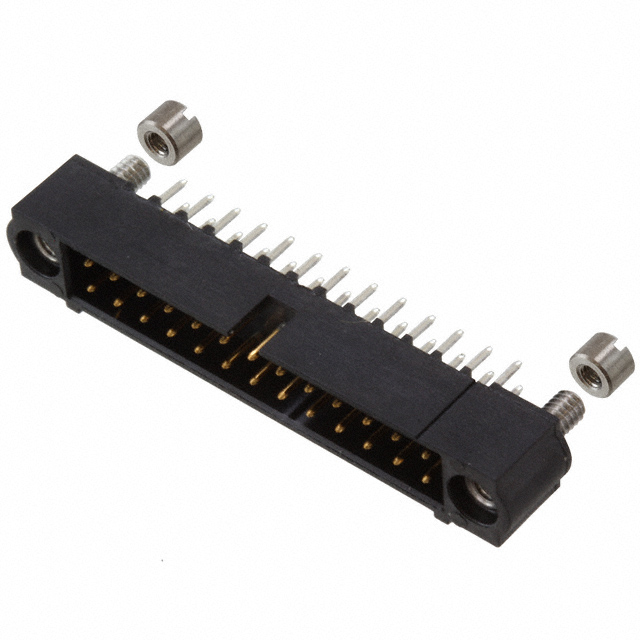

The M80-5112642 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 26-position configuration arranged in two rows with a 2.00mm pitch. Designed for through-hole mounting, the connector utilizes push-turn locking mechanisms and includes jackscrews for secure attachment. The contacts are tin-plated phosphor bronze pins housed in black PPS insulation rated UL94 V-0. It operates within a temperature range of -55°C to +125°C and supports board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Push-turn locking mechanism ensures secure mating without screws during connection
• Integrated jackscrew design provides additional mechanical stability
• Tin-plated contact surfaces offer reliable conductivity and corrosion resistance
• High-temperature PPS insulation material ensures durability in harsh environments

Headers, Male Pins Applications

• Board-to-board interconnections requiring high reliability
• Wire-to-board assemblies needing secure locking
• Industrial control systems operating in extreme temperatures
• Automotive electronics demanding robust mechanical retention

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, plating type, and locking style. Ensure compatibility with mating sockets from the same Datamate J-Tek series. Confirm that the tin-plated finish meets your environmental requirements rather than gold-plated alternatives. Check for any updated regulatory compliance certifications before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a through-hole male header with integrated jackscrews is required. The 2.00mm pitch suits dense circuit layouts. Consider the push-turn lock for rapid assembly versus screw-lock variants. Verify current ratings and voltage limits against system demands. Ensure the operating temperature range covers the intended application environment.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for compact, high-density interconnect solutions. The M80-5 series specifically denotes vertical headers with jackscrew options. This model represents a standard 26-pin variant within the broader product line, offering a balance of connectivity density and mechanical security for professional electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 26-position count, 2-row layout, 2.00mm pitch, and through-hole termination. Verify identical jackscrew presence and push-turn locking functionality. Cross-reference with other Harwin M80-5 variants ensuring compatible mating interfaces and electrical ratings.
