M80-5113442

Headers, Male Pins Overview

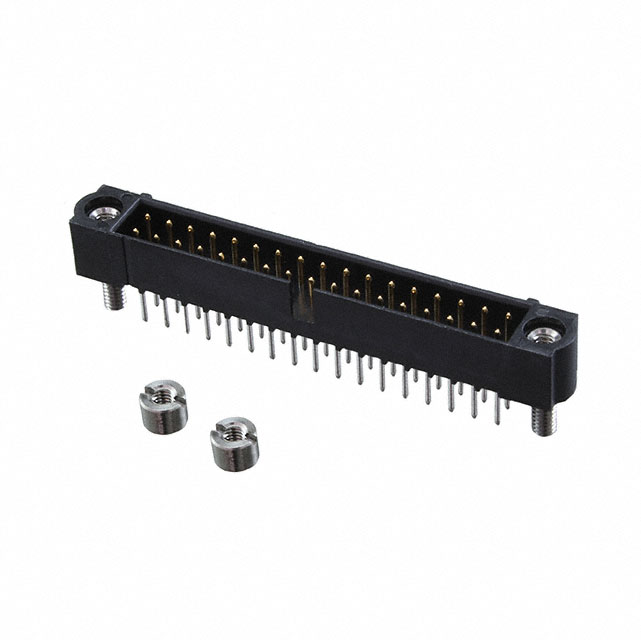

The M80-5113442 is a Datamate J-Tek series male header connector manufactured by Harwin Inc. It features a double-row configuration with 34 positions (17+17) and a 2.00mm pitch. Designed for vertical through-hole mounting, it utilizes gold-plated phosphor bronze contacts with tin-plated tails. The housing is black PPS with glass fiber reinforcement, rated UL94 V-0. Key mechanical features include integrated jackscrews with 5mm board mount studs and slotted nuts for secure attachment. It operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Vertical double-row male pin configuration with 2.00mm spacing
• Integrated jackscrew locking mechanism with board mount studs
• Gold contact plating for reliable signal transmission
• High-temperature resistant PPS insulation material

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• Automotive electronics interfaces
• Military and defense equipment connectors
• General purpose high-reliability interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required jackscrew lengths and nut types. Confirm that the selected variant matches the intended PCB thickness for proper stud engagement. Cross-reference the official Harwin datasheet for precise dimensional tolerances and mating partner specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a secure, screw-locked vertical connection is required for high-density signal routing. The 17+17 position count suits applications needing substantial I/O in a compact footprint. Ensure the mating receptacle belongs to the same Datamate J-Tek family to guarantee correct polarization and mechanical fit.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability. It complements female receptacles like the M80-405 series. The model number indicates a 34-position male header with specific tail length and locking features, distinct from standard shrouded headers.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 34-position counts and jackscrew configurations. Verify pitch and row alignment when considering alternative manufacturers. Ensure mating receptacles are sourced from the same product line to maintain interface integrity.
