M80-5120642

Headers, Male Pins Overview

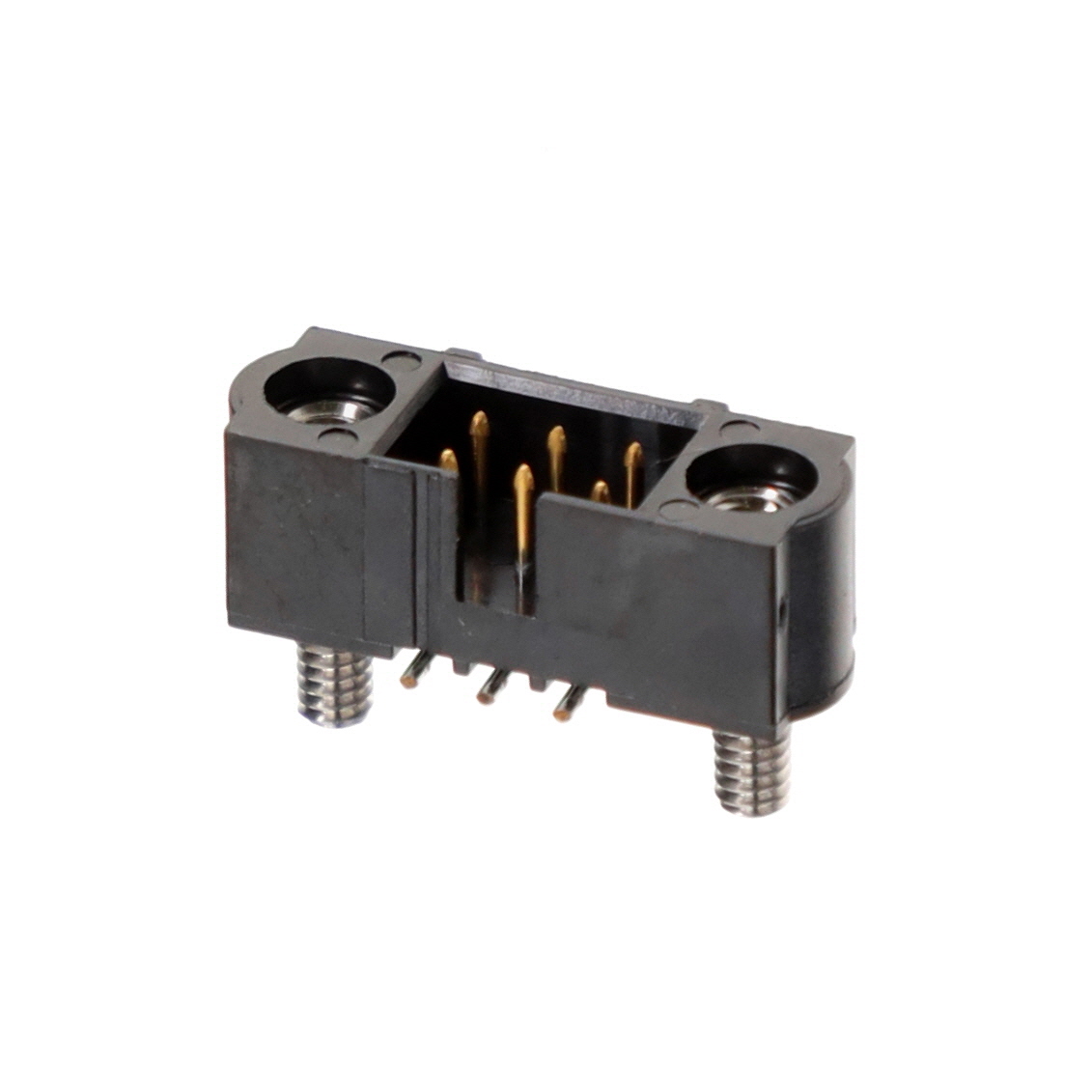

The Harwin M80-5120642 is a Datamate J-Tek series PCB header connector designed for surface mount installation. It features a dual-row configuration with six positions and a 2mm pitch. The connector utilizes gold-plated phosphor bronze contacts housed in black PPS insulation, rated for 120V and 3A current. It employs a push-turn locking mechanism and includes a shrouded design to ensure correct mating orientation.

Headers, Male Pins Feature Summary

• Push-turn locking mechanism for secure connection
• Shrouded housing prevents misalignment during mating
• Gold-plated contacts ensure reliable conductivity
• Surface mount termination for automated assembly

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial control systems
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific suffix against the official datasheet to confirm the presence or absence of keying slots and flange configurations. Ensure the selected variant matches the required mounting style and contact plating thickness for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface mount solution with high retention force is required. The Datamate J-Tek system offers extensive mating options. Confirm that the mating socket supports the push-turn locking interface and that the board layout accommodates the specified footprint dimensions.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its robust mechanical locking and compact form factor. It complements a wide range of sockets and cable assemblies within the same series, facilitating modular design approaches in space-constrained electronic applications requiring reliable signal and power transmission.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek headers with identical pin count, pitch, and mounting style. Verify compatibility with existing mating connectors before substitution.
