M80-5121022

Headers, Male Pins Overview

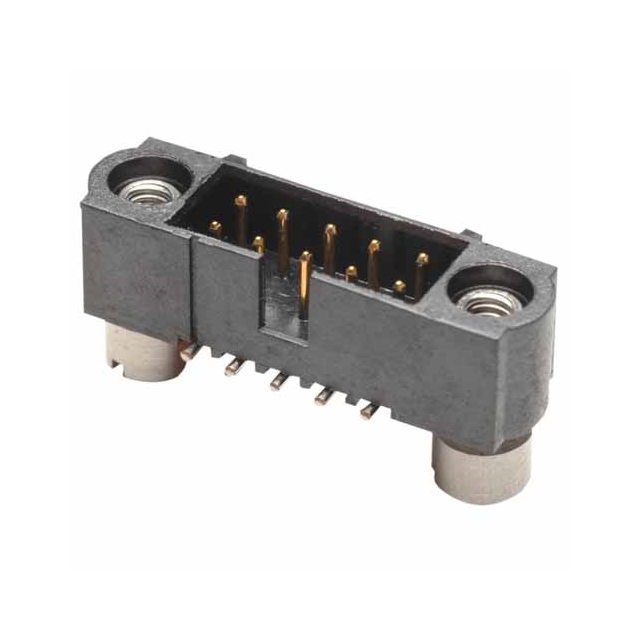

The M80-5121022 is a Datamate J-Tek series header connector manufactured by Harwin. It features a 10-position configuration with a 2mm (0.079 inch) pitch. The component utilizes surface mount technology for board attachment and contains male pin contacts. The housing is constructed from black Polyphenylene Sulfide (PPS), providing UL 94 V-0 flammability rating. Electrical specifications include a current rating of 3A and an operating temperature range from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface mount design for automated assembly processes
• Shrouded housing structure for alignment and protection
• Gold-plated phosphor bronze contacts for conductivity

Headers, Male Pins Applications

• General electronic interconnects
• Automotive systems
• Military equipment

Headers, Male Pins Procurement Notes

Verify the specific datasheet revision when sourcing, as manufacturing updates may occur. Confirm that the surface mount footprint matches the ECAD model provided by Harwin. Ensure compatibility with standard reflow soldering profiles suitable for PPS materials. Check for RoHS compliance status in the latest documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part for applications requiring vertical surface mount connections with high thermal stability. The 2mm pitch offers a balance between density and spacing. Consider the 3A current rating against circuit requirements. Verify that the male pin configuration aligns with the mating female socket or cable assembly specifications.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, designed for robust power and signal transmission. The M80 prefix indicates a specific connector type within the Harwin portfolio. It serves as a male header counterpart to female receptacles in the same series, ensuring mechanical and electrical interoperability across the system.

Headers, Male Pins Replacement Considerations

M80-5T210M3

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze with gold plating.

Does this connector feature a shrouded design?

Yes, the housing is shrouded to guide mating and protect contacts.
