M80-5121442

Headers, Male Pins Overview

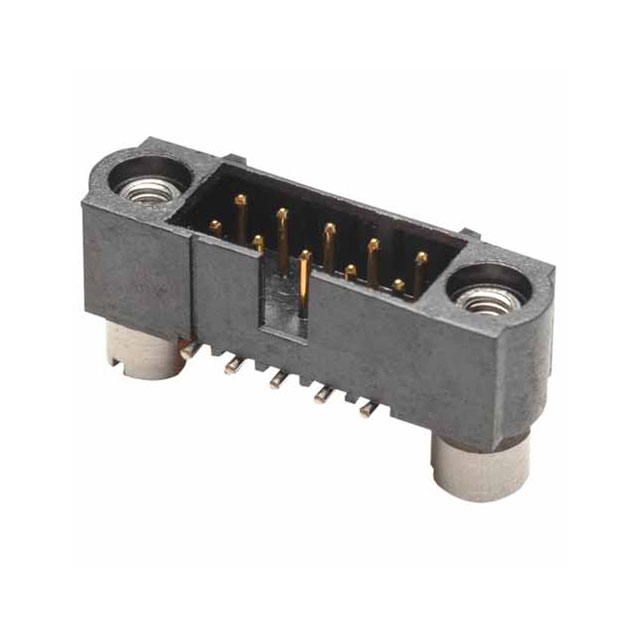

The Harwin M80-5121442 is a 14-position board-to-board or cable connector header from the Datamate J-Tek series. It features a 2 mm (0.079 in) mating pitch and utilizes a two-row configuration for signal connections. The component employs surface mount termination with solder pins, designed for vertical installation on printed circuit boards. Contacts are constructed from phosphor bronze and finished with gold plating to ensure reliable conductivity. The housing is made of black polyphenylene sulfide (PPS), providing structural integrity and thermal resistance.

Headers, Male Pins Feature Summary

• Datamate J-Tek series design for compact electronic assemblies
• Surface mount termination for automated PCB assembly
• Gold-plated phosphor bronze contacts for signal reliability
• Polyphenylene sulfide insulation material

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Compact electronic assemblies requiring signal transmission

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the M80-5121442 to confirm exact mechanical dimensions and soldering profile requirements. Ensure compatibility with the mating Datamate J-Tek female sockets. Check for any specific handling instructions related to surface mount components during procurement and storage.

Headers, Male Pins Selection Notes

Select this component when a 14-position vertical header with surface mount termination is required. The 2 mm pitch suits applications needing moderate density. Verify that the operating temperature range of -55°C to +125°C meets the environmental conditions of the target application.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, known for high-density interconnects. The M80-5121442 specifically addresses the need for vertical surface mount headers. It complements other variants in the series that offer through-hole or different pin counts.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate cross-compatibility only if mating dimensions and electrical ratings match exactly.
