M80-5122442

Headers, Male Pins Overview

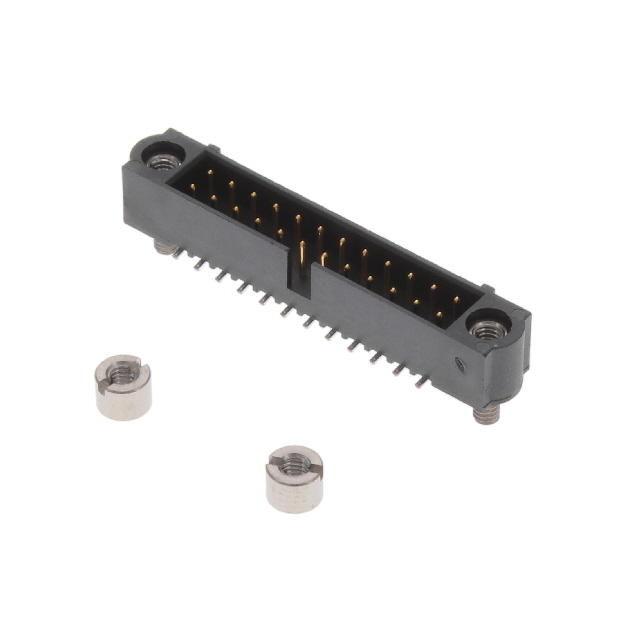

The M80-5122442 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 12+12 position configuration with a 2 mm pitch and double in-line layout. Designed for surface-mount technology, it utilizes vertical solder termination. The contacts are constructed from phosphor bronze with gold plating, housed in black polyphenylene sulfide (PPS) insulation reinforced with glass fiber. This component supports a rated current of 3 A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface-mount vertical design for automated PCB assembly
• Gold-plated phosphor bronze contacts for reliable conductivity
• High-temperature PPS insulation with UL94 V-0 flammability rating

Headers, Male Pins Applications

• Industrial control systems requiring robust board-to-board connections
• Aerospace avionics modules demanding high reliability
• Data center infrastructure equipment
• Power application circuit boards

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to ensure exact pin count and tail length specifications. Confirm that the surface-mount package variant matches the target PCB footprint requirements. Cross-reference the RoHS compliance status with the latest manufacturer documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a 24-position male header is required for surface-mount applications. Ensure the design accommodates the 2 mm pitch and double in-line arrangement. Verify that the 3 A current rating and 125°C operating temperature meet the system's thermal and electrical demands. Check compatibility with mating sockets in the Datamate J-Tek series.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for high-density interconnect solutions. The M80 series provides versatile options for various mounting styles and contact configurations. As a male header, it pairs with female sockets to establish secure electrical pathways in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

M80-5122442B1-00-000-00-000
