M80-5122622

Headers, Male Pins Overview

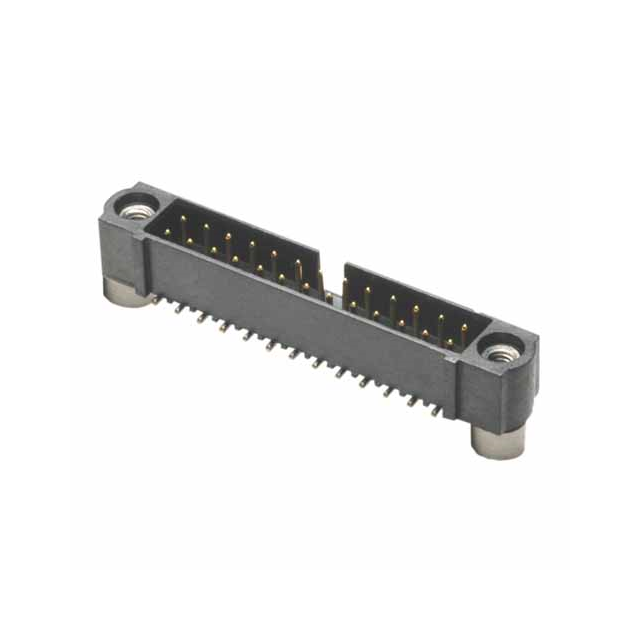

The Harwin M80-5122622 is a Datamate J-Tek power-to-board connector featuring a male pin configuration with 26 positions (13+13). It utilizes a 2 mm pitch and supports through-hole vertical mounting. The component operates within a temperature range of -55°C to +125°C, carries a 3 A current rating, and employs gold-plated phosphor bronze contacts housed in black PPS insulation.

Headers, Male Pins Feature Summary

• Datamate J-Tek series design for high-density power distribution
• Vertical through-board mounting orientation with jack screws
• Gold-plated phosphor bronze contacts for reliable conductivity
• Polyphenylene sulfide housing for thermal stability

Headers, Male Pins Applications

• Industrial control system power distribution
• Telecommunications equipment internal connections
• Automotive electronics power interfaces
• Medical device board-to-board power links

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm tail length, jack screw inclusion, and plating specifications. Ensure compatibility with mating female connectors from the same Datamate J-Tek family. Confirm RoHS compliance status and lead-free soldering requirements prior to procurement.

Headers, Male Pins Selection Notes

Select this component when vertical through-hole mounting is required for power delivery. The 2 mm pitch allows for compact layouts. Verify that the 3 A current rating meets circuit demands. Ensure the mating connector matches the female counterpart specifications for proper engagement and mechanical retention.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, designed for robust power applications. It complements other J-Tek headers and housings within the 2 mm pitch ecosystem. The series offers various position counts and mounting styles to support diverse electronic assembly needs across multiple industries.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, current rating, and contact configuration with alternative manufacturers' offerings.
