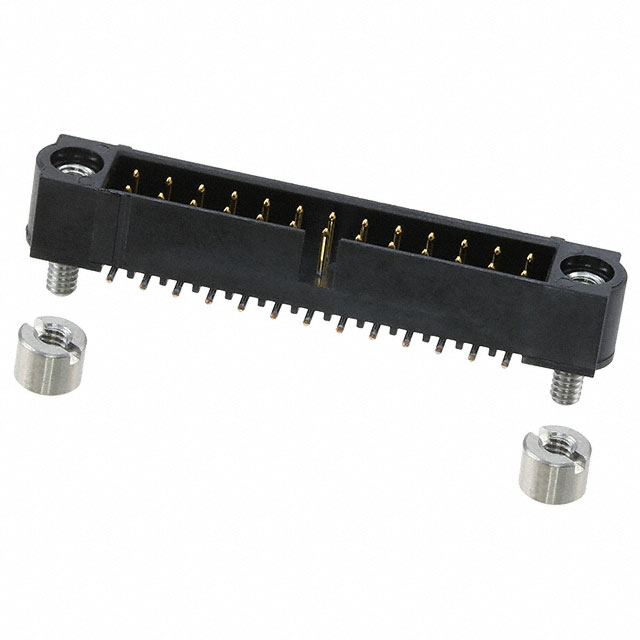

M80-5122642

$17.09

Description：CONN HEADER SMD 26POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:06902cd4bd4b Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-5122642 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 26POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M80-5122642

Description：CONN HEADER SMD 26POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：26
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.234" (5.95mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Headers, Male Pins datasheet and documents for M80-5122642

M80-5122642

Headers, Male Pins Overview

The M80-5122642 is a Datamate J-Tek series male pin header manufactured by Harwin Inc. It features a 26-position, 2-row configuration with a 2 mm (0.079 inch) mating pitch. Designed for surface mount installation, the connector utilizes phosphor bronze contacts with gold plating and a PPS housing. The unit supports a current rating of 2.2A and a voltage rating of 800V. Mated stacking heights include 7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, and 15.1mm.

Headers, Male Pins Feature Summary

Surface mount straight design for automated PCB assembly
High voltage rating of 800V for specialized applications
Gold-plated phosphor bronze contacts for reliable conductivity
Multiple mated stacking height options for flexible system integration

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
Industrial control systems requiring high voltage isolation
Compact electronic modules with space constraints

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to ensure correct contact finish thickness and housing material variants. Confirm that the surface mount footprint matches the target PCB design specifications before ordering. Check for RoHS compliance status in the latest documentation.

Headers, Male Pins Selection Notes

Select this component when a high-voltage rating of 800V is required alongside a compact 2 mm pitch. Ensure the application supports surface mount technology rather than through-hole mounting. Verify that the available mated stacking heights align with the mechanical envelope of the final assembly.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for its push-pull locking mechanism and robust performance in harsh environments. The M80-5122642 specifically addresses the need for high-density, surface-mountable connectors with elevated voltage capabilities compared to standard low-voltage counterparts.
