M80-5131042

Headers, Male Pins Overview

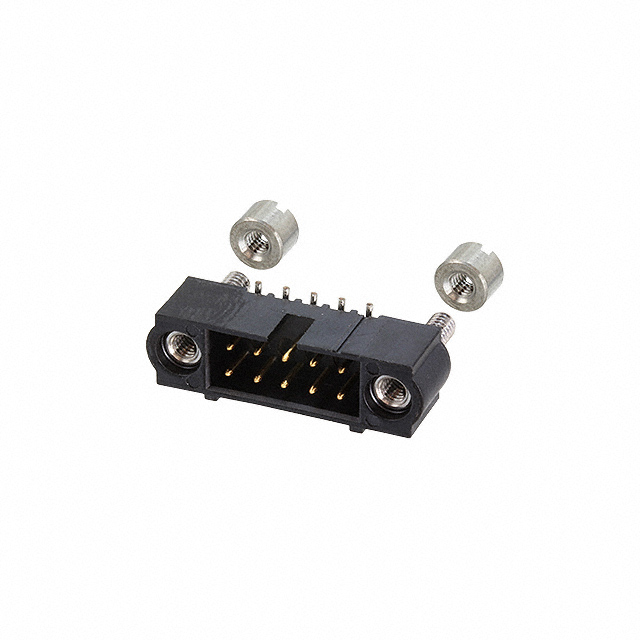

The M80-5131042 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 10-position (5+5) configuration with a 2.00mm pitch and horizontal orientation. Designed for surface mount technology, it utilizes phosphor bronze contacts with gold plating. The housing is constructed from black polyphenylene sulfide (PPS), reinforced with glass fiber, ensuring UL94 V-0 flammability ratings. Rated for 800V and operating within a temperature range of -55°C to +125°C, this component includes keying slots, mating flanges, and mounting flanges for secure assembly.

Headers, Male Pins Feature Summary

• Horizontal surface mount design for compact PCB integration
• High-voltage rating capability up to 800V
• Integrated keying slots and mounting flanges for precise alignment
• Durable PPS insulation material resistant to harsh environments

Headers, Male Pins Applications

• Industrial control systems requiring high voltage isolation
• Automotive electronics with strict space constraints
• Military equipment demanding reliable board-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm tail length and jack screw options. Ensure compatibility with mating sockets regarding keying positions. Confirm RoHS compliance status through current datasheets before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model for applications necessitating horizontal surface mount headers with high voltage tolerance. The 5+5 pin layout suits dual-rail power or signal distribution. Verify that the PCB footprint matches the specified SMD dimensions and that the mounting flange provisions align with the mechanical enclosure design.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek series, known for robust performance in demanding conditions. The M80 prefix indicates the standard connector family. As a male header, it pairs with female sockets to establish electrical pathways. The horizontal orientation distinguishes it from vertical variants, optimizing board height profiles.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek male headers with identical 2.00mm pitch and 10-position count. Ensure replacement parts match the horizontal orientation and surface mount termination style. Verify that mating flange and keying slot configurations are identical to maintain mechanical interchangeability.
