M80-5131222

Headers, Male Pins Overview

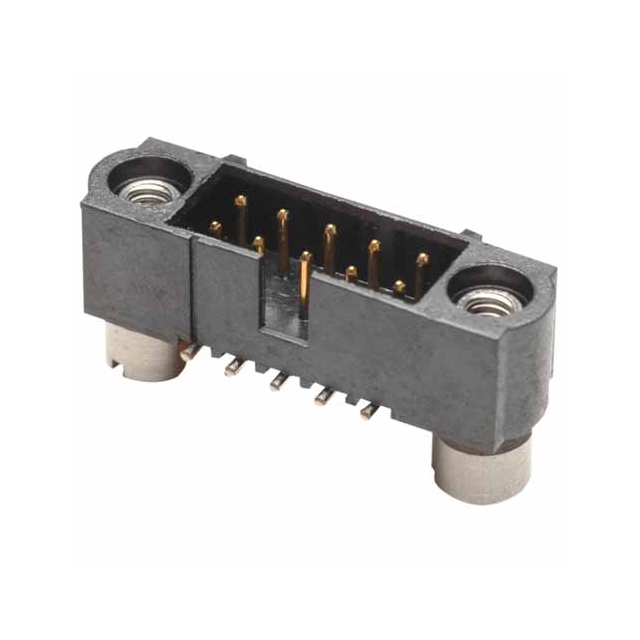

The M80-5131222 is a Datamate J-Tek series connector header manufactured by Harwin Inc. It features a male pin configuration with 12 positions arranged in a dual-row layout. The component utilizes a 2.00 mm (0.079 inch) mating pitch and is designed for surface mount technology (SMT) installation. Constructed with phosphor bronze contacts and gold plating, the housing is made of black polyphenylene sulfide (PPS). It operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly processes
• Shrouded structure providing four-wall shielding
• Keyway feature for precise alignment during mating

Headers, Male Pins Applications

• General purpose board-to-board interconnections
• Wire-to-board connections requiring SMT termination
• Industrial control systems utilizing Datamate J-Tek ecosystems

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact contact plating thickness and terminal finish specifications. Ensure compatibility with existing surface mount reflow profiles and check for any RoHS or REACH compliance updates prior to final procurement authorization.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount male header is required for high-density power or signal routing. The 12-position count suits moderate current applications within the J-Tek family constraints. Confirm that the vertical height and shrouding requirements align with the target assembly clearance and mating connector geometry.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek product line, which provides robust rectangular interconnect solutions. The series is characterized by its modular design, allowing for various position counts and mounting styles. The M80-5131222 specifically addresses needs for reliable surface-mounted connections in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible counterparts include other Harwin M80-513xxxxxx series headers with matching position counts and SMT termination. Verify mechanical dimensions and keying options before substituting to ensure proper fit within the designated PCB footprint.
