M80-5131442

Headers, Male Pins Overview

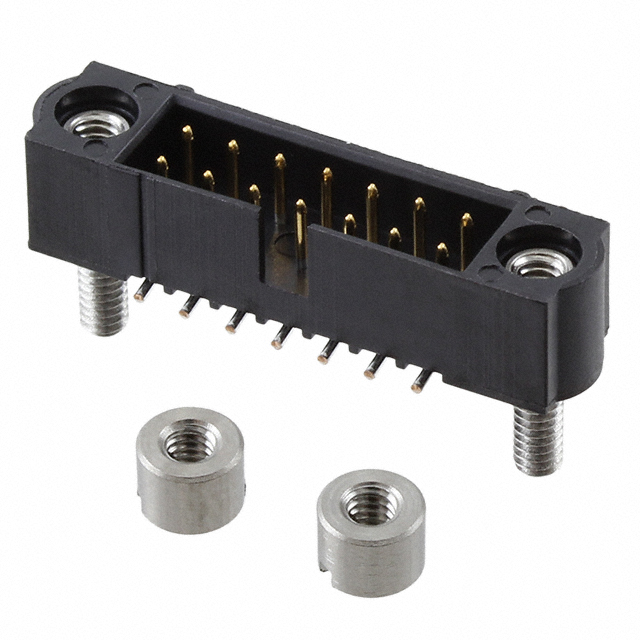

The M80-5131442 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 14-position configuration arranged in two rows with a 2 mm (0.079 inch) pitch. Designed for surface mount technology, this component utilizes vertical pins and includes a bottom mounting feature for enhanced stability. The connector supports a rated current of 3 A and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface mount design with vertical pin orientation
• Bottom mounting feature for secure PCB attachment
• Dual-row 14-position layout with 2 mm spacing
• Gold-plated contacts for reliable signal transmission

Headers, Male Pins Applications

• Automotive electronics systems
• General industrial equipment
• Military applications

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to ensure correct mating compatibility and mechanical specifications. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust surface mount solution with bottom mounting support is required. Ensure the mating connector matches the female counterpart specifications. Validate that the operating environment stays within the specified thermal limits for long-term reliability.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek series, known for high-density interconnects. It complements other M80-series connectors, providing versatile options for board-to-board and wire-to-board connections in compact electronic assemblies requiring durable performance.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-references directly with Harwin engineering support.
