Headers, Male Pins Overview

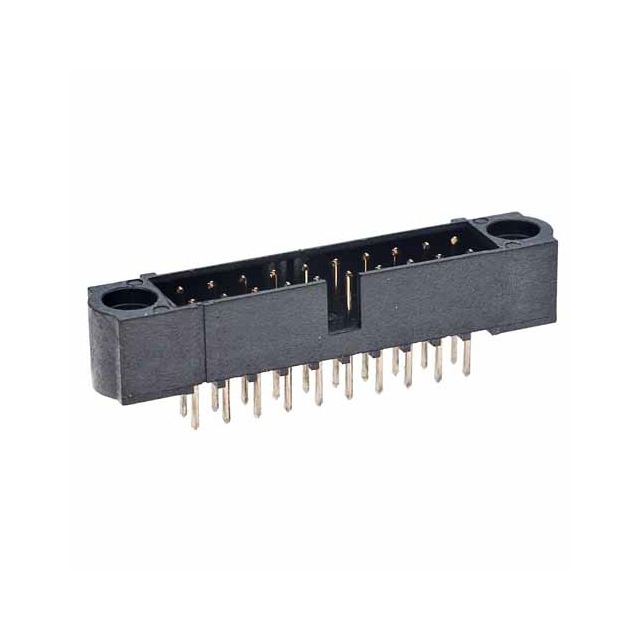

The M80-5203422 is a male pin header connector from the Harwin Datamate J-Tek series. It features a 34-position, two-row configuration with a 2.00mm pitch and 2.54mm row spacing. Designed for through-hole mounting, it utilizes circular phosphor bronze contacts with gold plating on the mating interface. The connector supports a current rating of 2.2A and includes push-pull fastening mechanisms. It operates within a temperature range of -55°C to +125°C and incorporates keying slots and mating flanges for secure alignment.

Headers, Male Pins Feature Summary

• Push-pull fastening mechanism for rapid engagement
• Keyed design ensures correct orientation
• Gold-plated circular contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure compatibility with required tail lengths or accessory configurations. Confirm that the push-pull fastening style matches the mechanical requirements of the target assembly. Cross-reference the component status to confirm availability before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this model when a robust, high-density connection is required in space-constrained environments. The Datamate J-Tek series offers a compact footprint suitable for dense PCB layouts. Ensure the 2.2A current rating meets the electrical load requirements of the application circuitry.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for its ruggedness and reliability in demanding environments. The series provides various mounting styles and contact counts to support diverse electronic design needs.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model variant.
