M80-5300622

Headers, Male Pins Overview

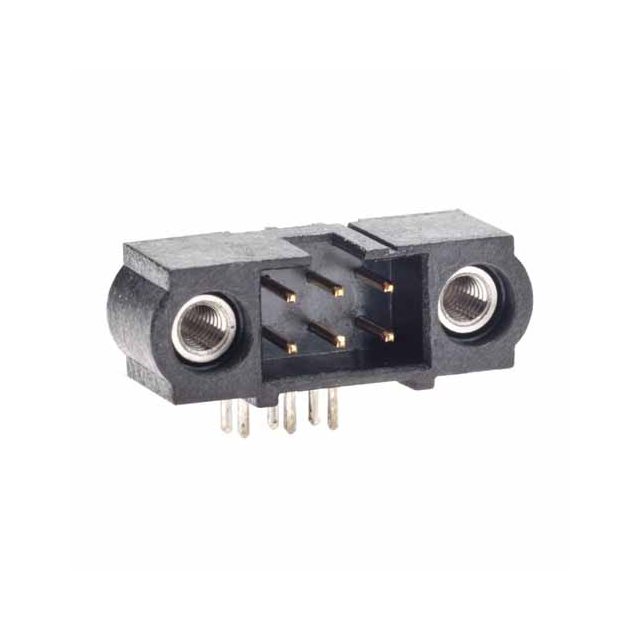

The M80-5300622 is a Datamate J-Tek power-to-board header manufactured by Harwin. It features a 6-position, 2-row male pin configuration with a 2 mm pitch. Designed for through-hole mounting, the connector utilizes phosphor bronze contacts with gold plating and a black polyphenylene sulfide (PPS) housing. The unit supports a current rating of 2.2 A and operates within a temperature range of -55°C to +125°C. It includes a 3 mm tail length and incorporates jack screws for secure mating.

Headers, Male Pins Feature Summary

• Datamate J-Tek series construction with phosphor bronze contacts and gold plating
• Through-hole mounting style with straight orientation and 3 mm tail length
• Integrated jack screw mechanism for reliable board-to-board connection

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics interfaces
• Telecommunications equipment power connections

Headers, Male Pins Procurement Notes

Verify component authenticity and datasheet alignment before integration. Confirm that the specific ordering suffix matches the required tail length and jack screw configuration. Check RoHS compliance status as indicated in official documentation. Ensure storage conditions preserve contact integrity prior to assembly.

Headers, Male Pins Selection Notes

Select this model when a low-profile, high-reliability power interface is needed. The 2 mm pitch allows for dense circuit layouts. The jack screw feature provides mechanical stability against vibration. Verify that the 2.2 A current rating meets system requirements. Consider the through-hole process compatibility during PCB design.

Headers, Male Pins Part Context

This component belongs to the Datamate J-Tek family, known for compact power-to-board solutions. It serves as a male header counterpart to female socket connectors within the same series. The design emphasizes durability and secure locking mechanisms for demanding environments.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other Harwin M80-5xxxxxx variants only if electrical and mechanical parameters match exactly.
