M80-5300642

Headers, Male Pins Overview

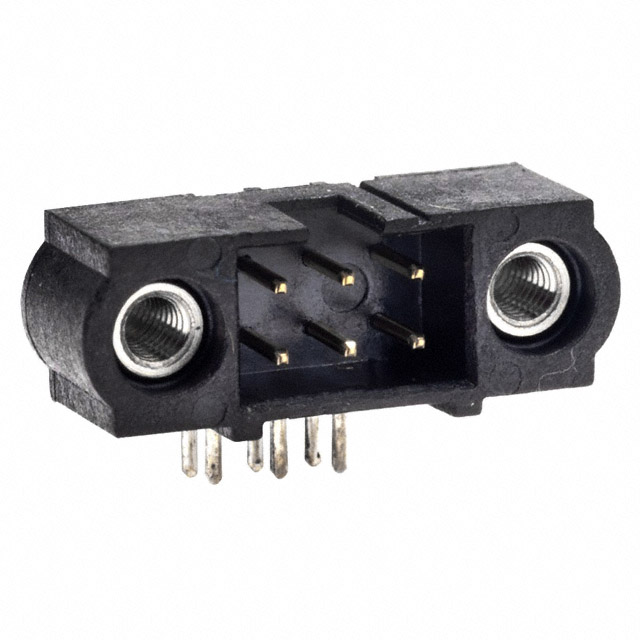

The M80-5300642 is a Datamate J-Tek header connector by Harwin Inc., featuring a 2-row, 6-position configuration with a 2.00mm pitch. Designed for through-hole mounting, it utilizes phosphor bronze contacts with gold plating on the mating interface and tin on the tail. The housing is black PPS (polyphenylene sulfide) with glass fiber reinforcement, rated UL94 V-0. It supports board-to-board or wire-to-board applications, offering a voltage rating of 120V and current capacity of 2.2A. Operating temperature ranges from -55°C to 121°C.

Headers, Male Pins Feature Summary

• Four-finger beryllium copper contact technology ensures connection integrity without loss
• Push-turn locking mechanism provides secure mechanical retention
• Keyed design prevents incorrect mating orientation

Headers, Male Pins Applications

• Industrial control systems requiring high-reliability interconnects
• Medical equipment demanding robust signal transmission
• Automotive electronics under harsh environmental conditions

Headers, Male Pins Procurement Notes

Verify the specific suffix '42' corresponds to the required pin length and termination style. Confirm that the through-hole right-angle orientation matches your PCB layout constraints. Ensure compatibility with the corresponding Datamate J-Tek socket series for proper mating. Check for any recent obsolescence notices from Harwin Inc. prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical or right-angle through-hole header is needed for compact 2mm pitch applications. Consider the 2.2A current rating against your circuit requirements. Evaluate the push-turn locking feature if vibration resistance is critical. Compare against similar M80 series parts for alternative row counts or orientations.

Headers, Male Pins Part Context

Part of the Datamate J-Tek family, known for high-density interconnect solutions. This model represents a standard header variant within the M80 series, distinguished by its specific pin count and through-hole termination method. It complements the broader ecosystem of Harwin rectangular connectors designed for space-constrained environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M80-530 variants with matching 6-position, 2-row specifications. Cross-reference part numbers like M80-53006M1 for equivalent electrical characteristics. Verify mechanical dimensions and locking mechanism compatibility before substitution.

Headers, Male Pins FAQ

What is the locking mechanism type?

The M80-5300642 uses a push-turn bayonet locking system for secure attachment.

Is the connector keyed?

Yes, it features a keyway to prevent incorrect mating orientation.
