M80-5300842

Headers, Male Pins Overview

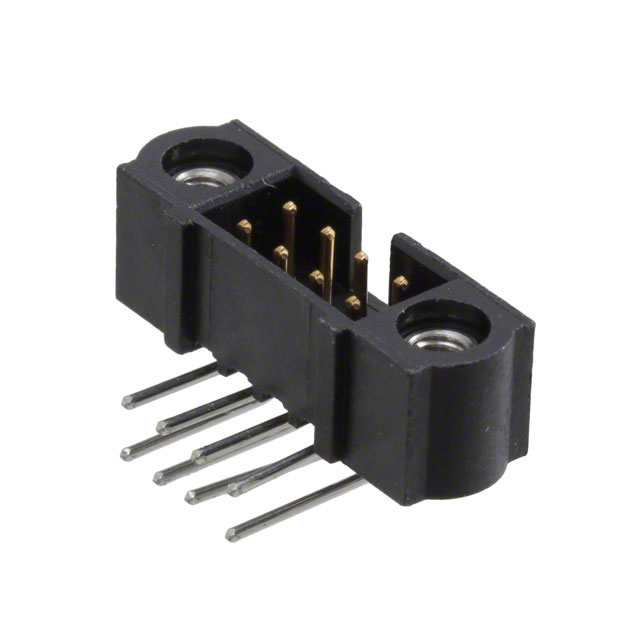

The Harwin M80-5300842 is a Datamate J-Tek male header connector designed for power-to-board applications. It features an 8-position configuration arranged in a double row (4+4). The connector utilizes through-hole right-angle termination with a 3mm tail length and includes integrated jackscrews for secure mating. It operates within a temperature range of -55°C to +125°C, supports a current rating of 3A, and withstands voltages up to 120V.

Headers, Male Pins Feature Summary

• Integrates internally threaded jackscrews for positive mechanical retention during mating cycles.
• Employs four-finger beryllium copper contact technology to ensure reliable connection integrity.
• Features a right-angle through-hole design with a 3mm tail for PCB mounting flexibility.

Headers, Male Pins Applications

• Industrial control systems requiring high-reliability interconnects
• Power distribution modules in electronic assemblies
• Automotive electronics demanding robust signal and power transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm terminal plating and jack screw configurations. Ensure compatibility with mating receptacles from the same Datamate J-Tek series. Confirm that the right-angle orientation and 3mm tail dimensions align with the target PCB layout requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header with mechanical locking is required for 3A power applications. The 2mm pitch and double-row format suit dense board layouts. Consider the beryllium copper contacts for durability in high-cycle environments compared to standard phosphor bronze alternatives.

Headers, Male Pins Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability interconnect solutions. It complements other Harwin connectors by offering a specific right-angle form factor with integrated jackscrews, distinguishing it from straight or non-locking variants within the broader power-to-board portfolio.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Datamate J-Tek male headers with identical 8-position, right-angle, and jackscrew specifications. Verify pin count, pitch, and termination style match exactly to maintain mechanical and electrical interface consistency.
